VA2110 - 30W Mono Class D Audio Amplifier

The VA2110 by Viva Electronics is a 30W Mono Class D Audio Amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	VA2110
Manufacturer	Viva Electronics
File Size	1.10 MB
Description	30W Mono Class D Audio Amplifier
Datasheet	VA2110-VivaElectronics.pdf

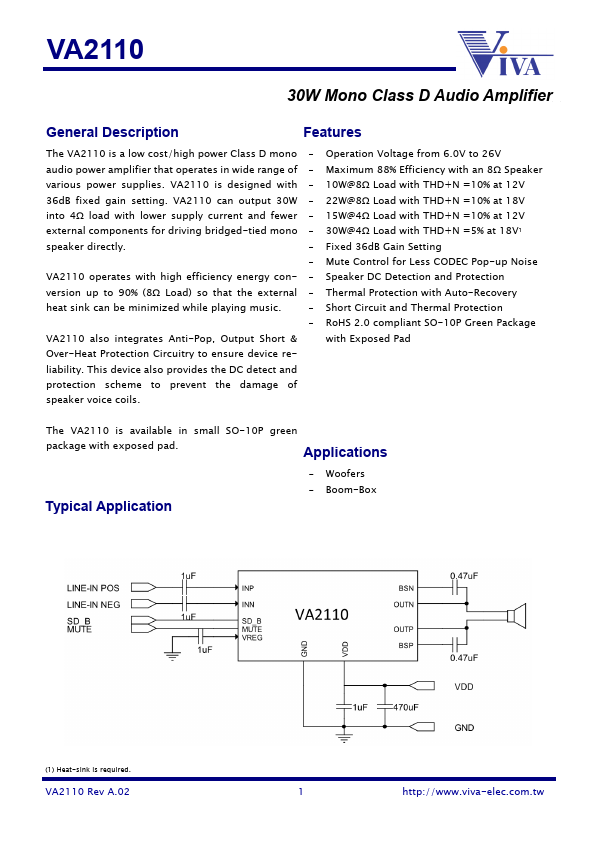

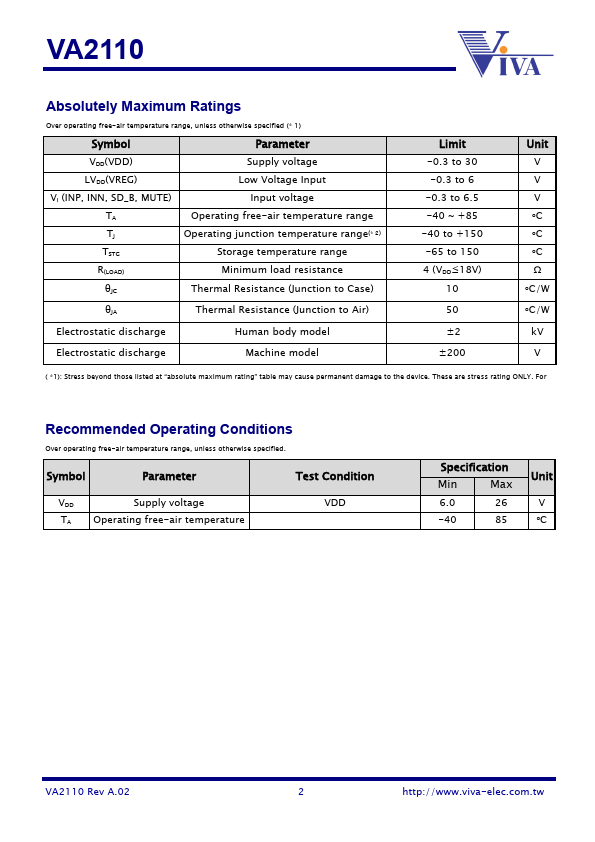

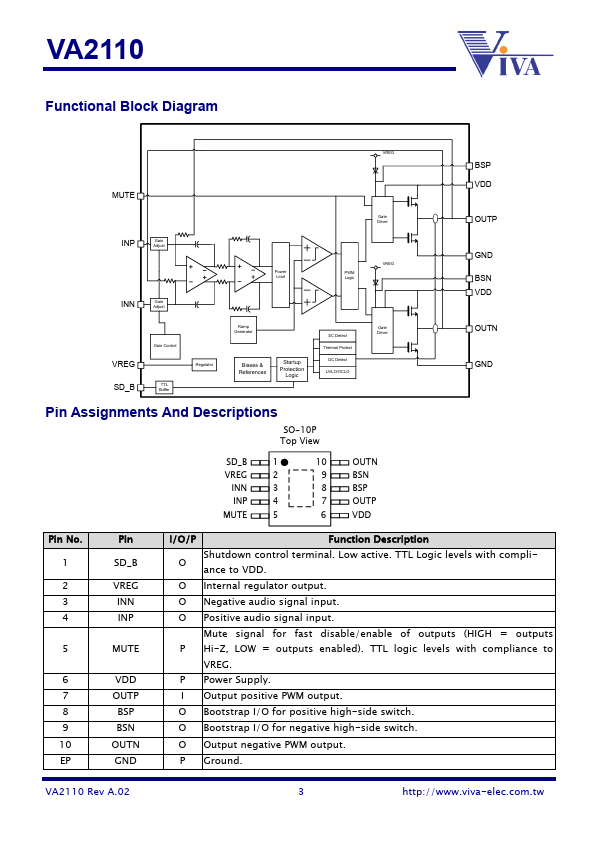

Additional preview pages of the VA2110 datasheet.

The VA2110 is a low cost/high power Class D mono - Operation Voltage from 6.0V to 26V audio power amplifier that operates in wide range of - Maximum 88% Efficiency with an 8Ω Speaker various power supplies. VA2110 is designed with - 10W@8Ω Load with THD+N =10% at 12V 36dB fixed gain setting. VA2110 can output 30W - 22W@8Ω Load with THD+N =10% at 18V into 4Ω load with lower supply current and fewer - 15W@4Ω Load with THD+N =10% at 12V external components for driving bridged-tied mono - 30W@.
