VSC8166 - 2.488 Gbit/sec 1:16 SONET/SDH Demux

Vitesse Semiconductor

VSC8166 Datasheet Preview — Preview of VSC8166 PDF

Datasheet Details

Part number	VSC8166
Manufacturer	Vitesse Semiconductor
File Size	141.48 KB
Description	2.488 Gbit/sec 1:16 SONET/SDH Demux
Datasheet	VSC8166-VitesseSemiconductor.pdf

VSC8166 Product details

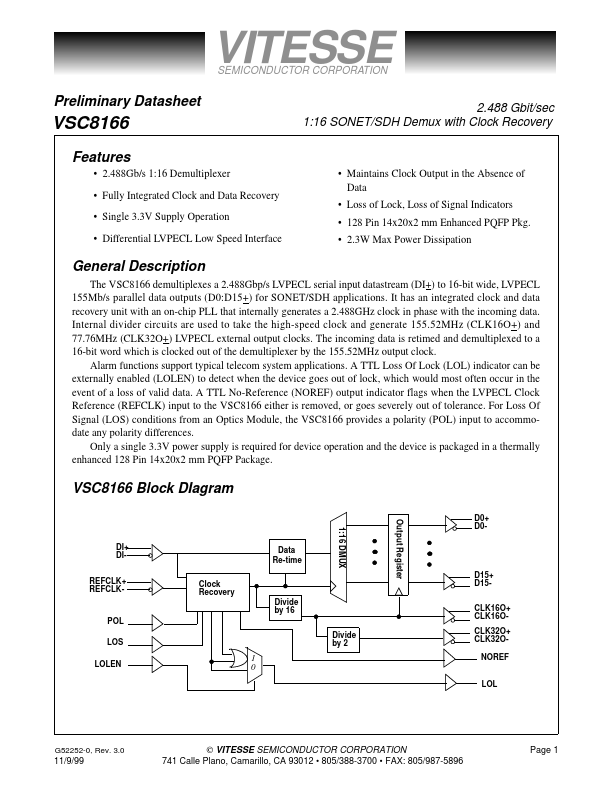

Description

The VSC8166 demultiplexes a 2.488Gbp/s LVPECL serial input datastream (DI+) to 16-bit wide, LVPECL 155Mb/s parallel data outputs (D0:D15+) for SONET/SDH applications.

Features

2.488Gb/s 1:16 Demultiplexer.

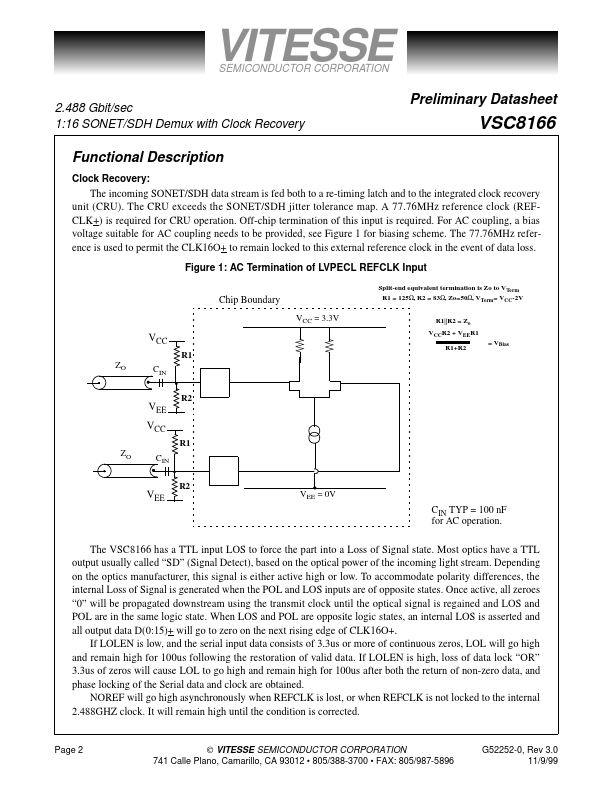

Fully Integrated Clock and Data Recovery.
Single 3.3V Supply Operation.

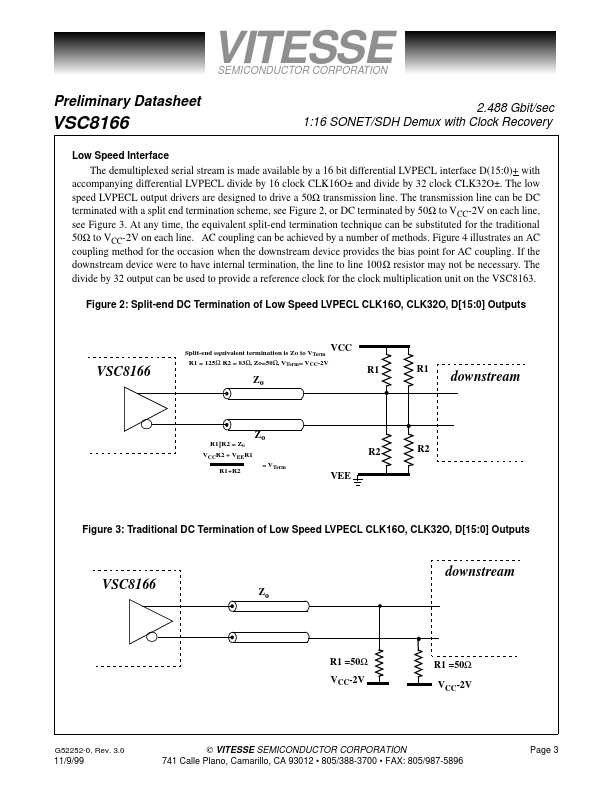

Differential LVPECL Low Speed Interface.
Maintains Clock Output in the Absence of Data.
Loss of Lock, Loss of Signal Indicators.
128 Pin 14x20x2 mm Enhanced PQFP Pkg.
2.3W Max Power Dissipation General.
