Z302-C, Z301-C High Surge Axial Cemented Leaded Wirewound Resistors

Z302-C Description

www.vishay.com Z300-Cxx Vishay Draloric High Surge Axial Cemented Leaded Wirewound Resistors .
Part Number: Z34081834700J6DC10 Z 3 4 0 8 1 8 3 4 7 0 0 J 6DC1 0 TYPE TCR/MATERIAL RESISTANCE TOLERANCE CODE Z310309 = Z301-C ZDA0411 = ZDA0411-C.

Z302-C Features

* High voltage surge (up to 12 kV) withstanding capability
* Non flammable silicon cement coating
* High grade ceramic core
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 DESIGN SUPPORT TOOLS AVAILABLE 3D 3D 3D Models A

Z302-C Applications

* Energy meter
* Appliances
* Ballast The Z300-Cxx series, is the perfect choice for high voltage surge applications. This product series is tested and proven to meet the 1.2 / 50 μs pulse up to 12 kV defined in IEC 61000-4-5. Typical applications include but are not limited

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: Z302-C, Z301-C. Please refer to the document for exact specifications by model.

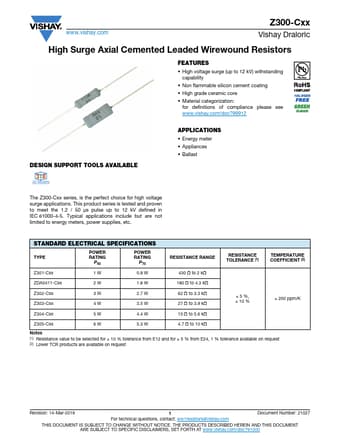

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Z302-C, Z301-C
Manufacturer
Vishay ↗
File Size
151.73 KB
Datasheet
Z301-C-Vishay.pdf
Description
High Surge Axial Cemented Leaded Wirewound Resistors
Note
This datasheet PDF includes multiple part numbers: Z302-C, Z301-C.
Please refer to the document for exact specifications by model.
