Z302BV20327 - Wirewound Resistors

Download the Z302BV20327 datasheet PDF. This datasheet also covers the Z3020414 variant, as both devices belong to the same wirewound resistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Can operate as both a normal resistor and as a fuse.
  • Fuses when overloaded by more than 100 times the rated power.
  • Ceramic core.
  • Non flammable cement coating.
  • Mainly designed to customer requirements.
  • Pure tin plating provides compatibility with lead (Pb)-free and lead containing soldering processes.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (Z3020414-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
Z30-13-5-75 Directional Coupler 75 5 to 1500 MHz Mini-Circuits
Z30-16-5-75 Directional Coupler 75 5 to 1500 MHz Mini-Circuits
Z300 ZENER SILICON RETIFIER Rectron Semiconductor
Z3013PI AOZ3013PI Alpha & Omega Semiconductors
Z3015PI AOZ3015PI ALPHA & OMEGA

Other Datasheets by Vishay

Part Number Description
Z302-C High Surge Axial Cemented Leaded Wirewound Resistors
Z3020414 Wirewound Resistors
Z300 Axial Cemented Wirewound Resistors
Z301-C High Surge Axial Cemented Leaded Wirewound Resistors
Z303-C High Surge Axial Cemented Leaded Wirewound Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

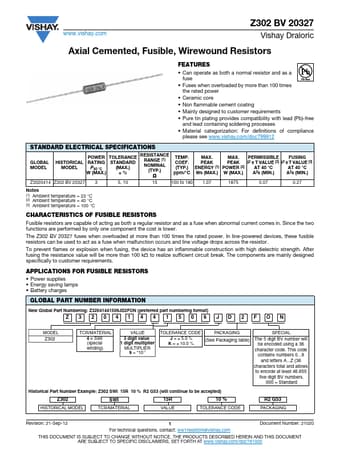

www.vishay.com Z302 BV 20327 Vishay Draloric Axial Cemented, Fusible, Wirewound Resistors FEATURES • Can operate as both a normal resistor and as a fuse • Fuses when overloaded by more than 100 times the rated power • Ceramic core • Non flammable cement coating • Mainly designed to customer requirements • Pure tin plating provides compatibility with lead (Pb)-free and lead containing soldering processes • Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 STANDARD ELECTRICAL SPECIFICATIONS GLOBAL MODEL HISTORICAL MODEL POWER RATING P40 °C W (MAX.) TOLERANCE STANDARD (MAX.) ±% RESISTANCE RANGE (1) NOMINAL (TYP.)  TEMP. COEF. (TYP.) ppm/°C MAX. MAX.
