VT3045CBP - Trench MOS Barrier Schottky Rectifier

VT3045CBP Description

New Product VT3045CBP Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0.30 V a.

VT3045CBP Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC 2 3
* Halogen-free

VT3045CBP Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. CASE PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 15 A TOP max. 2 x 15 A 45 V 200 A 0.39 V 150 °C MECHANICAL DATA Case: TO-220AB Molding compound meets UL 94 V-0 flammability

📥 Download Datasheet

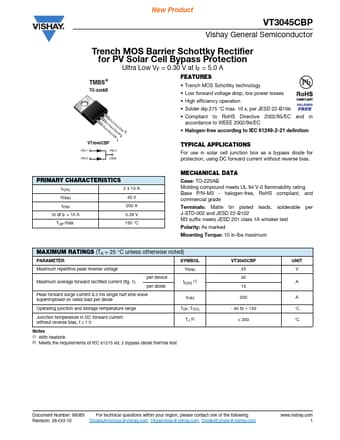

Preview of VT3045CBP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VT3045CBP
Manufacturer
Vishay ↗
File Size
178.75 KB
Datasheet
VT3045CBP_Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
