VSKC91-06P, VSKE91-10P Power Modules Standard Diodes

Vishay

Description

VSKD91.., VSKC91.., VSKJ91.., VSKE91..Series www.vishay.com Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Standard Diodes, 100 A A.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

📥 Download Datasheet

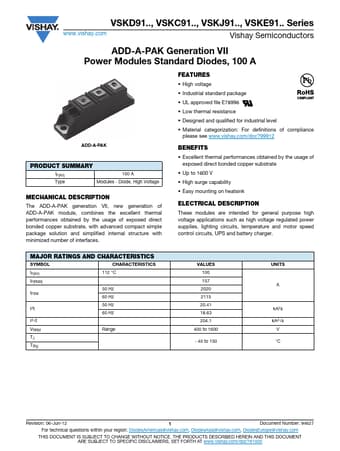

VSKC91-06P Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKC91-06P, VSKE91-10P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VSKC91-06P, VSKE91-10P
Manufacturer: Vishay ↗
File Size: 259.07 KB
Datasheet: VSKE91-10P-Vishay.pdf
Description: Power Modules Standard Diodes
Note: This datasheet PDF includes multiple part numbers: VSKC91-06P, VSKE91-10P.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Industrial standard package
* UL approved file E78996
* Low thermal resistance
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 BENEFITS

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) IF(RMS) IFSM 112 °C 50 Hz 60 Hz 50 Hz I2t 60 Hz I2√t VRRM TJ TStg Range VALUES 100 157 20
