VSKC166-xxPBF, VSKD166-04PBF - Standard Recovery Diodes

Vishay Siliconix

📥 Download Datasheet

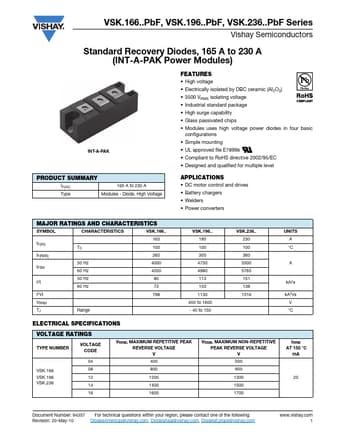

VSKC166-xxPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKC166-xxPBF, VSKD166-04PBF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VSKC166-xxPBF, VSKD166-04PBF
Manufacturer: Vishay ↗ Siliconix
File Size: 347.28 KB
Datasheet: VSKD166-04PBF_VishaySiliconix.pdf
Description: Standard Recovery Diodes
Note: This datasheet PDF includes multiple part numbers: VSKC166-xxPBF, VSKD166-04PBF.
Please refer to the document for exact specifications by model.

VSKC166-xxPBF Product details

Features

High voltage.
Electrically isolated by DBC ceramic (AI2O3).
3500 VRMS isolating voltage.
Industrial standard package.
High surge capability.
Glass passivated chips.
Modules uses high voltage power diodes in four basic configurations.
Simple mounting INT-A-PAK.
UL approved file E78996.
Compliant to RoHS directive 2002/95/EC.
Designed and qualified for multiple level.
