VS-UFL80FA60 Insulated Ultrafast Rectifier Module

Vishay

VS-UFL80FA60 Description

www.vishay.com VS-UFL80FA60 Vishay Semiconductors Insulated Ultrafast Rectifier Module, 80 A SOT-227 PRODUCT SUMMARY VR IF(AV) per module at TC = .
The VS-UFL80FA60 insulated modules integrate two state of the art ultrafast recovery rectifiers in the compact, industry standard SOT-227 package.

VS-UFL80FA60 Features

* Two fully independent diodes
* Fully insulated package
* Ultrafast, soft reverse recovery, with high operation junction temperature (TJ max. = 175 °C)
* Low forward voltage drop

VS-UFL80FA60 Applications

* Easy to use and parallel
* Industry standard outline
* UL approved file E78996
* Designed and qualified for industrial level

📥 Download Datasheet

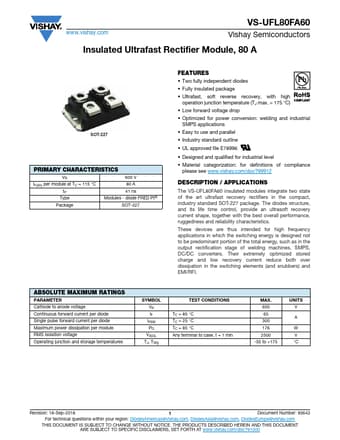

VS-UFL80FA60 Datasheet Preview — Preview of VS-UFL80FA60 PDF

Datasheet Details

Part number: VS-UFL80FA60
Manufacturer: Vishay ↗
File Size: 143.45 KB
Datasheet: VS-UFL80FA60-Vishay.pdf
Description: Insulated Ultrafast Rectifier Module
