VS-MBR4045WT-N3, VS-MBR4045WTPbF - Schottky Rectifier

Vishay

📥 Download Datasheet

VS-MBR4045WT-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR4045WT-N3, VS-MBR4045WTPbF. Please refer to the document for exact specifications by model.

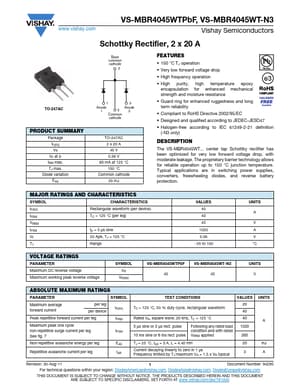

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-MBR4045WT-N3, VS-MBR4045WTPbF
Manufacturer	Vishay ↗
File Size	150.67 KB
Description	Schottky Rectifier
Datasheet	VS-MBR4045WTPbF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-MBR4045WT-N3, VS-MBR4045WTPbF. Please refer to the document for exact specifications by model.

VS-MBR4045WT-N3 Product details

Description

The VS-MBR4045WT center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

Features

150 °C TJ operation.
Very low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Compliant to RoHS Directive 2002/95/EC.
Designed and qualified according to JEDEC-JESD47.
Halogen-free according to IEC 61249-2-21 definition (-N3 only).
