VS-MBR2045CT-N3, VS-MBR2035CTPbF Schottky Rectifier

Vishay

Description

VS-MBR20CTPbF Series, VS-MBR20CT-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 10 A Base 2 common cathode TO-220AB Anod.
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

📥 Download Datasheet

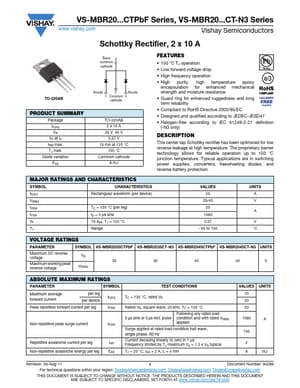

VS-MBR2045CT-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR2045CT-N3, VS-MBR2035CTPbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-MBR2045CT-N3, VS-MBR2035CTPbF
Manufacturer: Vishay ↗
File Size: 157.44 KB
Datasheet: VS-MBR2035CTPbF-Vishay.pdf
Description: Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-MBR2045CT-N3, VS-MBR2035CTPbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFRM IFSM VF TJ Rectangular waveform (per device) TC = 135 °C (per leg) tp = 5 μs sine 10 Apk, TJ = 125 °C Range VALUES 20 35/4
