VS-MBR1545CT-1PbF, VS-MBRB1535CTPbF - Schottky Rectifier

Vishay

📥 Download Datasheet

VS-MBR1545CT-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR1545CT-1PbF, VS-MBRB1535CTPbF. Please refer to the document for exact specifications by model.

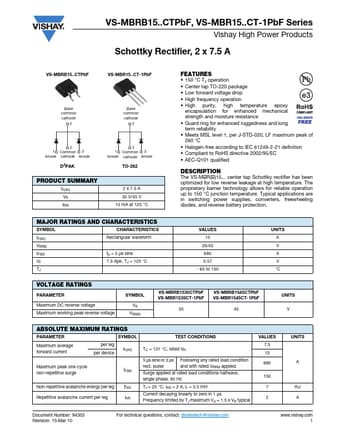

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-MBR1545CT-1PbF, VS-MBRB1535CTPbF
Manufacturer	Vishay ↗
File Size	169.65 KB
Description	Schottky Rectifier
Datasheet	VS-MBRB1535CTPbF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-MBR1545CT-1PbF, VS-MBRB1535CTPbF. Please refer to the document for exact specifications by model.

VS-MBR1545CT-1PbF Product details

Description

The VS-MBR(B)15 center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

Features

150 °C TJ operation.
Center tap TO-220 package.
Low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Halogen-free according to IEC 61249-2-21 definition.
Compliant to RoHS directive 2002/9.
