VS-MBR1045-M3, VS-MBR1035-M3 High Performance Schottky Rectifier

Vishay

Description

www.vishay.com VS-MBR1035-M3, VS-MBR1045-M3 Vishay Semiconductors High Performance Schottky Rectifier, 10 A Base cathode 2 2L TO-220AC 13 Cathode.
This Schottky rectifier has been optimized for low reverse leakage at high temperature.

📥 Download Datasheet

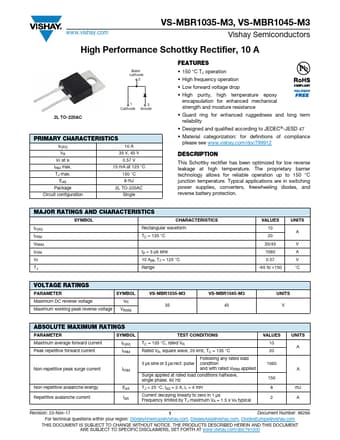

VS-MBR1045-M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR1045-M3, VS-MBR1035-M3. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-MBR1045-M3, VS-MBR1035-M3
Manufacturer: Vishay ↗
File Size: 149.18 KB
Datasheet: VS-MBR1035-M3-Vishay.pdf
Description: High Performance Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-MBR1045-M3, VS-MBR1035-M3.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* High frequency operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* De

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform IFRM TC = 135 °C VRRM IFSM VF tp = 5 μs sine 10 Apk, TJ = 125 °C TJ Range VALUES 10 20 35/45 1060 0.57 -6
