VS-GT100TP60N Half Bridge IGBT

VS-GT100TP60N Description

www.vishay.com VS-GT100TP60N Vishay Semiconductors Half Bridge IGBT Power Module, 600 V, 100 A INT-A-PAK PRIMARY CHARACTERISTICS VCES IC at TC = .
Vishay’s IGBT power module provides ultra low conduction loss as well as short circuit ruggedness.

VS-GT100TP60N Features

* Low VCE(on) trench IGBT technology
* 5 μs short circuit capability
* VCE(on) with positive temperature coefficient
* Maximum junction temperature 175 °C
* Low inductance case
* Fast and soft reverse recovery antiparallel FWD
* Isolated copper

VS-GT100TP60N Applications

* UPS (uninterruptable power supply)
* Switching mode power supplies

📥 Download Datasheet

Preview of VS-GT100TP60N PDF

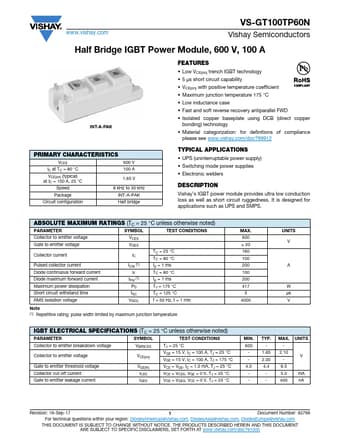

datasheet Preview Page 2 datasheet Preview Page 3
