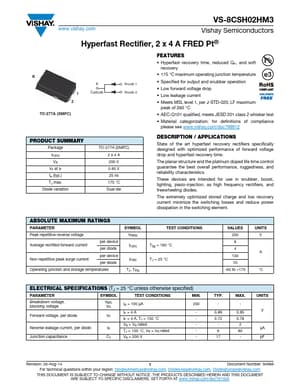

VS-8CSH02HM3 Datasheet Preview — Preview of VS-8CSH02HM3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VS-8CSH02HM3
Manufacturer: Vishay ↗
File Size: 118.46 KB
Datasheet: VS-8CSH02HM3-Vishay.pdf
Description: Hyperfast Rectifier

VS-8CSH02HM3 Product details

Description

/

Features

Hyperfast recovery time, reduced Qrr, and soft recovery.
175 °C maximum operating junction temperature.
Specified for output and snubber operation.
Low forward voltage drop.
Low leakage current.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified, meets JESD 201 class 2 whisker test.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
