VS-8CSH01HM3 - Hyper Fast Rectifier

Vishay

📥 Download Datasheet

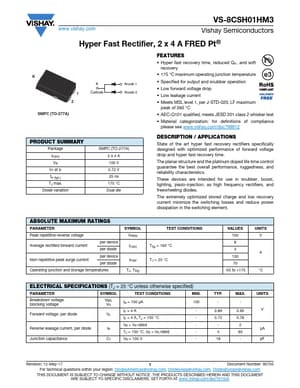

VS-8CSH01HM3 Datasheet Preview — Preview of VS-8CSH01HM3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VS-8CSH01HM3
Manufacturer: Vishay ↗
File Size: 123.77 KB
Datasheet: VS-8CSH01HM3-Vishay.pdf
Description: Hyper Fast Rectifier

VS-8CSH01HM3 Product details

Description

/

Features

Hyper fast recovery time, reduced Qrr, and soft recovery.
175 °C maximum operating junction temperature.
Specified for output and snubber operation.
Low forward voltage drop.
Low leakage current.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified, meets JESD 201 class 2 whisker test.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
