VS-4EWH02FN-M3 Hyperfast Rectifier

VS-4EWH02FN-M3 Description

www.vishay.com VS-4EWH02FN-M3 Vishay Semiconductors Hyperfast Rectifier, 4 A FRED Pt® DPAK (TO-252AA) 2, 4 13 N/C Anode .
/ APPLICATIONS State of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperf.

VS-4EWH02FN-M3 Features

* Hyperfast recovery time
* 175 °C max. operating junction temperature
* Output rectification freewheeling
* Low forward voltage drop reduced Qrr and soft recovery
* Low leakage current
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

VS-4EWH02FN-M3 Applications

* State of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast recovery time. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characterist

📥 Download Datasheet

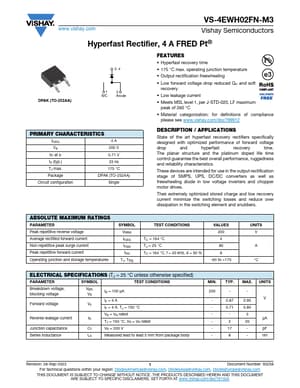

Preview of VS-4EWH02FN-M3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
