VS-4ESH01HM3 Hyperfast Rectifier

VS-4ESH01HM3 Description

www.vishay.com VS-4ESH01HM3 Vishay Semiconductors Hyperfast Rectifier, 4 A FRED Pt® K 1 2 TO-277A (SMPC) K Cathode Anode 1 Anode 2 .
/ APPLICATIONS State of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast r.

VS-4ESH01HM3 Features

* Hyperfast recovery time, reduced Qrr, and soft recovery
* 175 °C maximum operating junction temperature
* Specified for output and snubber operation
* Low forward voltage drop
* Low leakage current
* Meets MSL level 1, per J-STD-020, LF maximum peak

VS-4ESH01HM3 Applications

* State of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast recovery time. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness, and reliability characteristics. Thes

📥 Download Datasheet

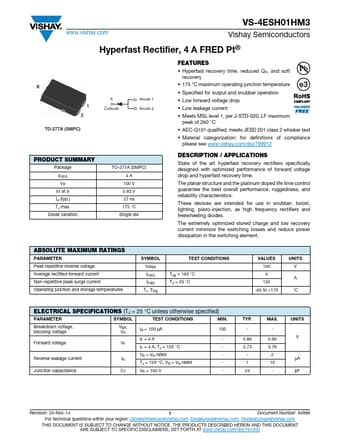

Preview of VS-4ESH01HM3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
