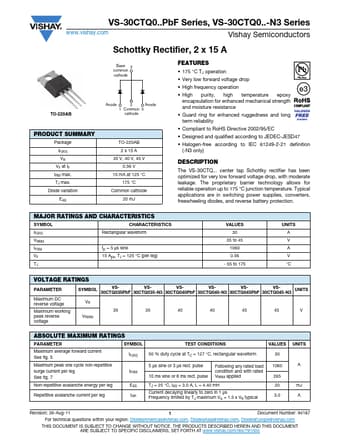

VS-30CTQ0..PbF Series, VS-30CTQ0..-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cathode TO-220AB An.
The VS-30CTQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.
Features
* 175 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
Applications
* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS
IF(AV)
Rectangular waveform
VRRM
IFSM tp = 5 μs sine
VF 15 Apk, TJ = 125 °C (per leg) TJ
VALUES 30
35 to 45 1060 0.56
- 55 to 175
UNITS
