VS-30CTQ035-1PbF, VS-30CTQ035SPbF High Performance Schottky Rectifier

Vishay

Description

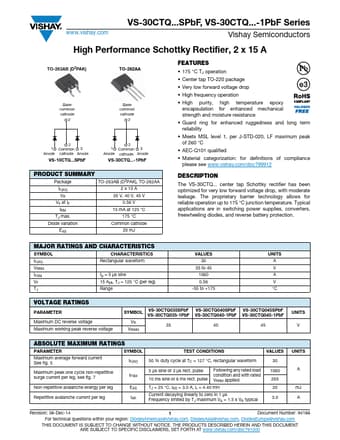

www.vishay.com VS-30CTQSPbF, VS-30CTQ-1PbF Series Vishay Semiconductors High Performance Schottky Rectifier, 2 x 15 A TO-263AB (D2PAK) TO-262AA B.
The VS-30CTQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

📥 Download Datasheet

VS-30CTQ035-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-30CTQ035-1PbF, VS-30CTQ035SPbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-30CTQ035-1PbF, VS-30CTQ035SPbF
Manufacturer: Vishay ↗
File Size: 155.93 KB
Datasheet: VS-30CTQ035SPbF-Vishay.pdf
Description: High Performance Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-30CTQ035-1PbF, VS-30CTQ035SPbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Center tap TO-220 package
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedne

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.   MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 15 Apk, TJ = 125 °C (per leg) Range VALUES 30 35 to 45 1060 0.56 -55 to +175
