VS-20CTQ045PbF, VS-20CTQ035PbF Schottky Rectifier

Vishay

Description

VS-20CTQPbF Series, VS-20CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 10 A Base 2 common cathode TO-220AB Anode 2.
The VS-20CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

📥 Download Datasheet

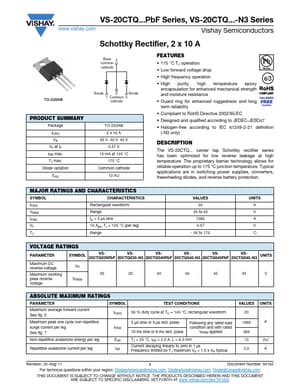

VS-20CTQ045PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-20CTQ045PbF, VS-20CTQ035PbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-20CTQ045PbF, VS-20CTQ035PbF
Manufacturer: Vishay ↗
File Size: 175.32 KB
Datasheet: VS-20CTQ035PbF-Vishay.pdf
Description: Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-20CTQ045PbF, VS-20CTQ035PbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM Range IFSM tp = 5 μs sine VF 10 Apk, TJ = 125 °C (per leg) TJ Range VALUES 20 35 to 45 1060 0.57 - 55
