Description

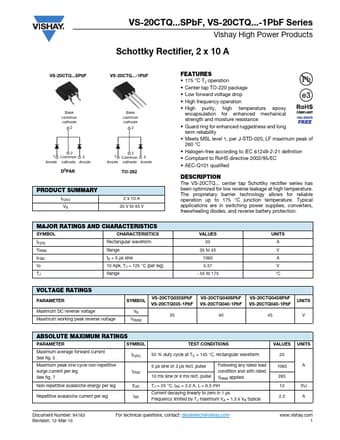

VS-20CTQSPbF, VS-20CTQ-1PbF Series Vishay High Power Products Schottky Rectifier, 2 x 10 A VS-20CTQSPbF VS-20CTQ-1PbF Base common cathode 2 Base c.
The VS-20CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.
Features
* 175 °C TJ operation
* Center tap TO-220 package
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness an
Applications
* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. VALUES 20
35 to 45 1060 0.57
- 55 to 175
UNITS A V A V °C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage Maximum working peak reverse voltage
SYMBOL
VR VRWM
VS-20CTQ035SPbF VS-20CTQ035-1PbF
3
