VS-150EBU04-N4 150A Ultrafast Soft Recovery Diode

VS-150EBU04-N4 Description

www.vishay.com VS-150EBU04-N4 Vishay Semiconductors Ultrafast Soft Recovery Diode, 150 A FRED Pt® 1 2 Cathode Anode PowerTab® LINKS TO ADDITIONA.
/ APPLICATIONS These diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

VS-150EBU04-N4 Features

* Ultrafast recovery time
* 175 °C max. operating junction temperature
* Screw mounting only
* Designed and qualified according to JEDEC®-JESD 47
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 BENEFITS
* Re

VS-150EBU04-N4 Applications

* These diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for HF welding, power converters and other applications where switching losses a

📥 Download Datasheet

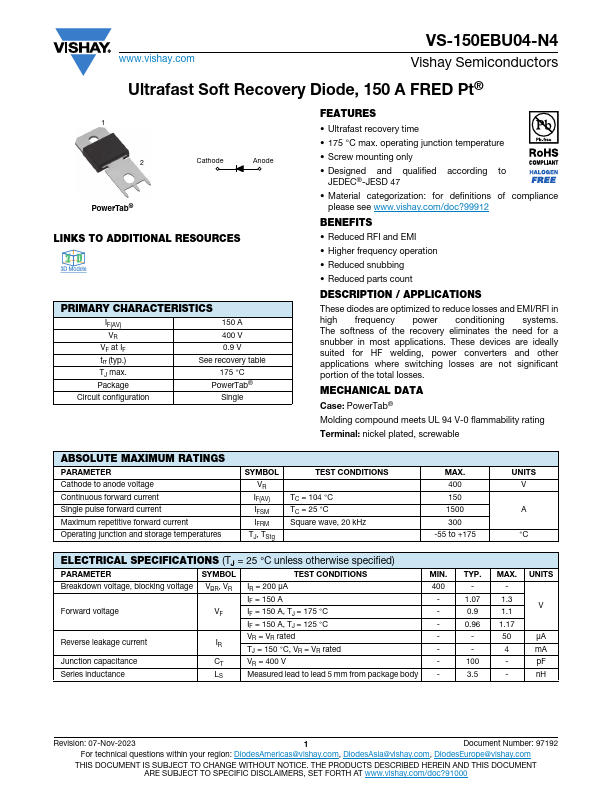

Preview of VS-150EBU04-N4 PDF

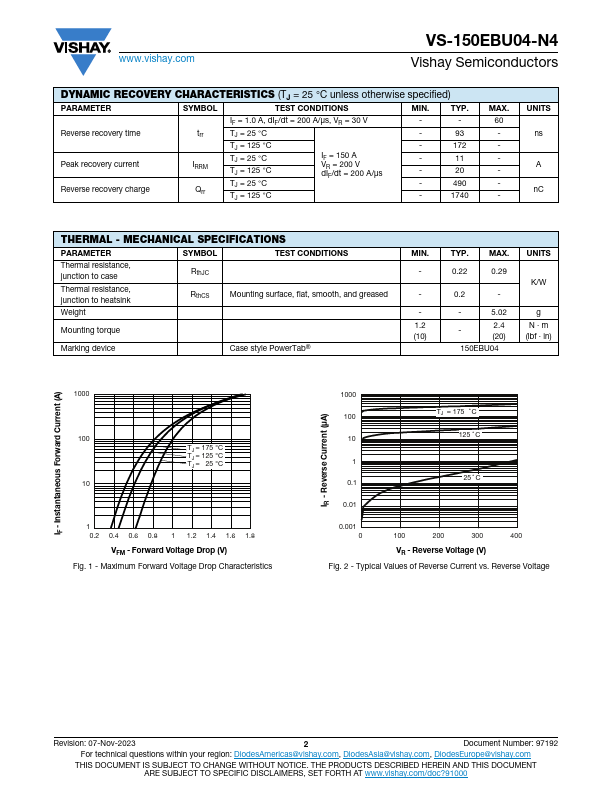

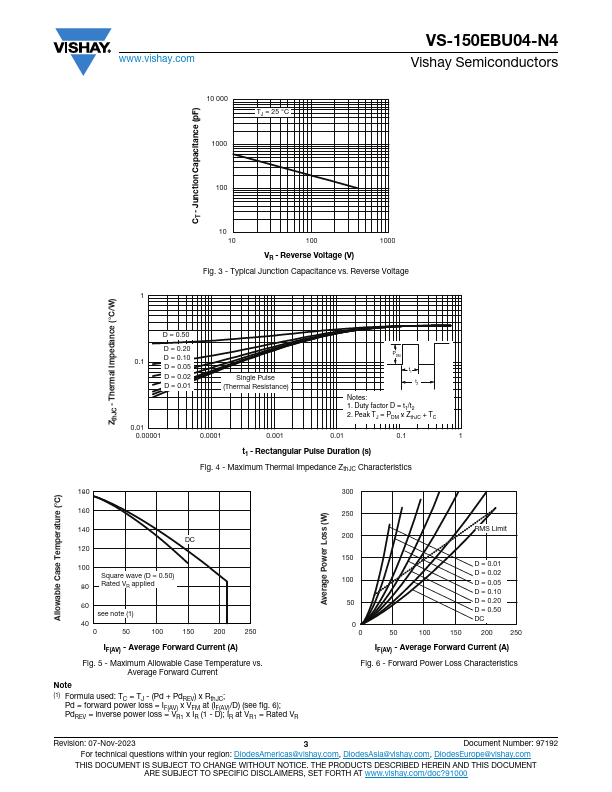

datasheet Preview Page 2 datasheet Preview Page 3
