VS-150EBU04 Ultrafast Soft Recovery Diode

VS-150EBU04 Description

www.vishay.com VS-150EBU04 Vishay Semiconductors Ultrafast Soft Recovery Diode, 150 A FRED Pt® PowerTab® Cathode Anode PRODUCT SUMMARY Package I.
APPLICATIONS These diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

VS-150EBU04 Features

* Ultrafast recovery time
* 175 °C max. operating junction temperature
* Screw mounting only
* Designed and qualified according to JEDEC-JESD47
* Compliant to RoHS Directive 2002/95/EC
* PowerTab® package BENEFITS
* Reduced RFI and EMI

VS-150EBU04 Applications

* These diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for HF welding, power converters and other applications where switching losses a

📥 Download Datasheet

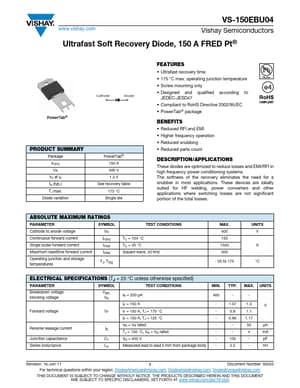

Preview of VS-150EBU04 PDF
datasheet Preview Page 2 datasheet Preview Page 3
