VS-10ETS08FP-M3 - Rectifier Diode

Download the VS-10ETS08FP-M3 datasheet PDF. This datasheet also covers the VS-10ETS08FPPbF variant, as both devices belong to the same rectifier diode family and are provided as variant models within a single manufacturer datasheet.

Description

High voltage rectifiers optimized for very low forward voltage drop with moderate leakage.

Features

  • Very low forward voltage drop.
  • 150 °C max. operating junction temperature.
  • Designed and qualified according to JEDEC-JESD47.
  • Fully isolated package (VINS = 2500 VRMS).
  • UL E78996 approved.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 Available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VS-10ETS08FPPbF-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
VS-100M POWER RELAY Fujitsu
VS-100S POWER RELAY Fujitsu
VS-12M POWER RELAY Fujitsu
VS-12S POWER RELAY Fujitsu
VS-14M POWER RELAY Fujitsu

Other Datasheets by Vishay

Part Number Description
VS-10ETS08FPPbF Rectifier Diode
VS-10ETS08-M3 Input Rectifier Diode
VS-10ETS08S-M3 High Voltage Surface Mount Input Rectifier Diode
VS-10ETS08SPbF High Voltage Surface Mount Input Rectifier Diode
VS-10ETS10S-M3 High Voltage Surface Mount Input Rectifier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

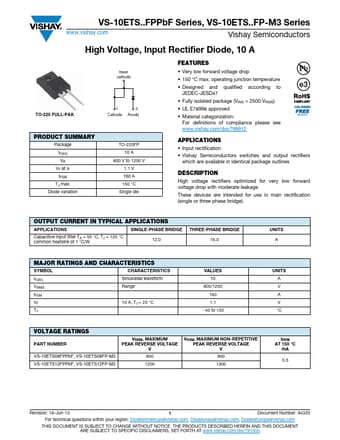

VS-10ETS..FPPbF Series, VS-10ETS..FP-M3 Series www.vishay.com Vishay Semiconductors High Voltage, Input Rectifier Diode, 10 A Base cathode TO-220 FULL-PAK 13 Cathode Anode PRODUCT SUMMARY Package IF(AV) VR VF at IF IFSM TJ max. Diode variation TO-220FP 10 A 800 V to 1200 V 1.1 V 160 A 150 °C Single die FEATURES • Very low forward voltage drop • 150 °C max. operating junction temperature • Designed and qualified according to JEDEC-JESD47 • Fully isolated package (VINS = 2500 VRMS) • UL E78996 approved • Material categorization: For definitions of compliance please see www.vishay.
