VLSL4136A, VLSL4112A High Brightness LED Power Module

Vishay

Description

VLSL4112A, VLSL4124A, VLSL4136A Vishay Semiconductors High Brightness LED Power Module 22140 22139 .
The VLSL41xxA are metal core based high brightness LED power modules, assembled with 12, 24 or 36 HB white LEDs.

📥 Download Datasheet

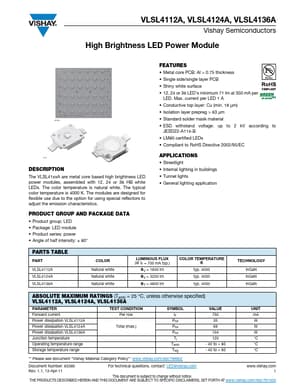

VLSL4136A Datasheet Preview — This datasheet PDF includes multiple part numbers: VLSL4136A, VLSL4112A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VLSL4136A, VLSL4112A
Manufacturer: Vishay ↗
File Size: 221.30 KB
Datasheet: VLSL4112A-Vishay.pdf
Description: High Brightness LED Power Module
Note: This datasheet PDF includes multiple part numbers: VLSL4136A, VLSL4112A.
Please refer to the document for exact specifications by model.

Features

* Metal core PCB: Al > 0.75 thickness
* Single side/single layer PCB
* Shiny white surface
* 12, 24 or 36 LED’s minimum 71 lm at 350 mA per LED. Max. current per LED 1 A
* Conductive top layer: Cu (min. 18 μm)
* Isolation layer prepreg > 63 μm
