VLSL4212A - High Brightness LED Power Module

Vishay

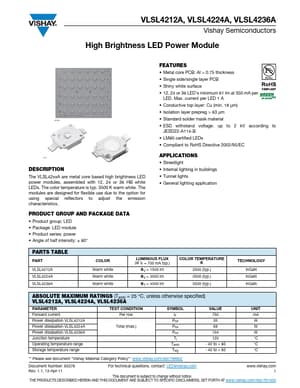

VLSL4212A Datasheet Preview — Preview of VLSL4212A PDF

Datasheet Details

Part number	VLSL4212A
Manufacturer	Vishay ↗
File Size	224.93 KB
Description	High Brightness LED Power Module
Datasheet	VLSL4212A-Vishay.pdf

VLSL4212A Product details

Description

The VLSL42xxA are metal core based high brightness LED power modules, assembled with 12, 24 or 36 HB white LEDs. Product group: LED Package: LED module Product series: power Angle of half intensity: ± 80°

Features

Metal core PCB: Al > 0.75 thickness.
Single side/single layer PCB.
Shiny white surface.
12, 24 or 36 LED’s minimum 61 lm at 350 mA per LED. Max. current per LED 1 A.
Conductive top layer: Cu (min. 18 μm).
Isolation layer prepreg > 63 μm.
Standard solder mask material.
ESD withstand voltage: up to 2 kV according to JESD22-A114-B.
LM80 certified LEDs.
Compliant to RoHS Directive 2002/95/EC.
