VESD16C1-02V, VESD01C1-02V Datasheet - Vishay

VESD16C1-02V Single-Line ESD-Protection Diode

VESD16C1-02V Features

* Compact SOD-523 package Available

* Low package height < 0.7 mm

* 1-line unidirectional ESD-protection

* AEC-Q101 qualified available

* Working range 1 V to 33 V

* ESD immunity acc. IEC 61000-4-2 ±15 kV to ±30 kV contact discharge ±15 kV to ±3

VESD01C1-02V-Vishay.pdf

This datasheet PDF includes multiple part numbers: VESD16C1-02V, VESD01C1-02V. Please refer to the document for exact specifications by model.

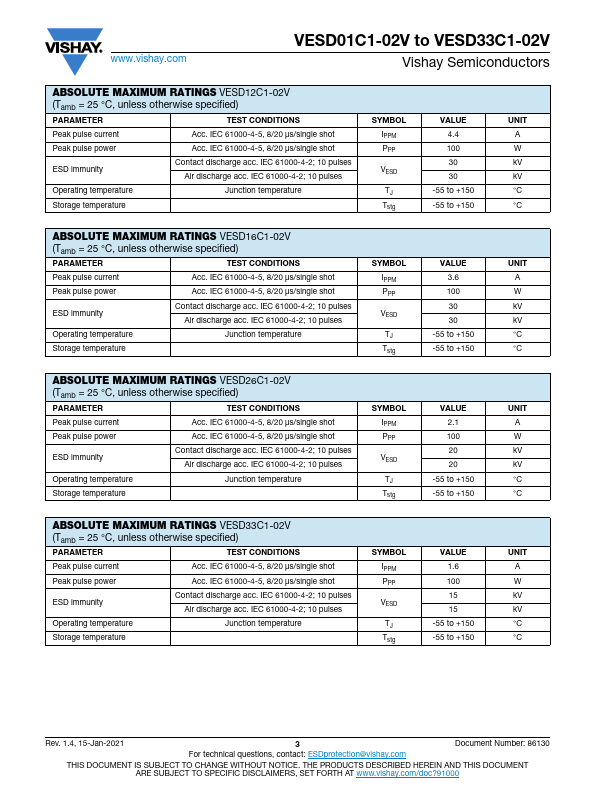

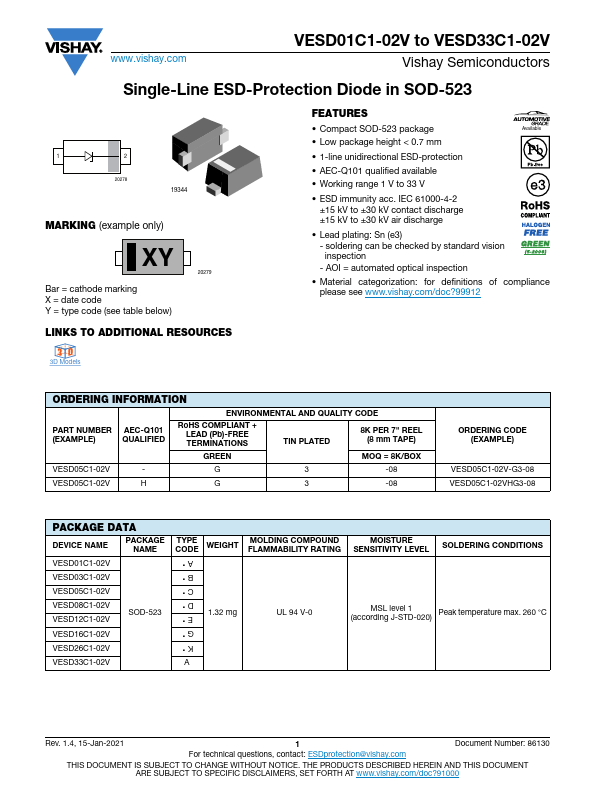

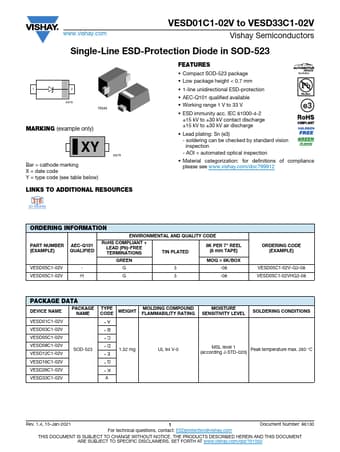

VESD16C1-02V Datasheet Preview Page 2 VESD16C1-02V Datasheet Preview Page 3

Datasheet Details

Part number:

VESD16C1-02V, VESD01C1-02V

Manufacturer:

Vishay ↗

File Size:

128.53 KB

Description:

Single-line esd-protection diode.

Note:

This datasheet PDF includes multiple part numbers: VESD16C1-02V, VESD01C1-02V.
Please refer to the document for exact specifications by model.
