VESD12C1-02V, VESD01C1-02V Single-Line ESD-Protection Diode

Vishay

Description

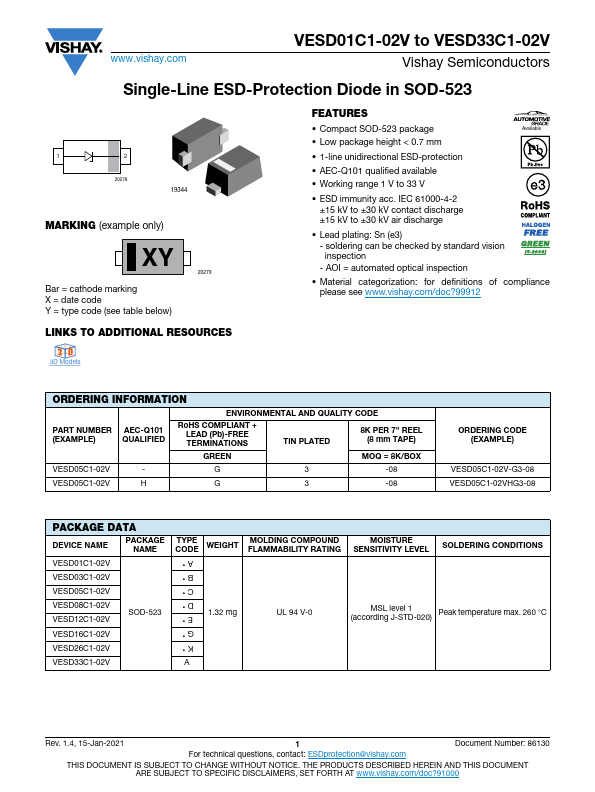

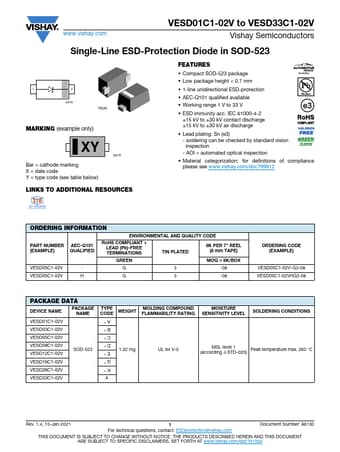

www.vishay.com VESD01C1-02V to VESD33C1-02V Vishay Semiconductors Single-Line ESD-Protection Diode in SOD-523 1 2 20278 19344 MARKING (example .

📥 Download Datasheet

VESD12C1-02V Datasheet Preview — This datasheet PDF includes multiple part numbers: VESD12C1-02V, VESD01C1-02V. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VESD12C1-02V, VESD01C1-02V
Manufacturer: Vishay ↗
File Size: 128.53 KB
Datasheet: VESD01C1-02V-Vishay.pdf
Description: Single-Line ESD-Protection Diode
Note: This datasheet PDF includes multiple part numbers: VESD12C1-02V, VESD01C1-02V.
Please refer to the document for exact specifications by model.

Features

* Compact SOD-523 package Available
* Low package height < 0.7 mm
* 1-line unidirectional ESD-protection
* AEC-Q101 qualified available
* Working range 1 V to 33 V
* ESD immunity acc. IEC 61000-4-2 ±15 kV to ±30 kV contact discharge ±15 kV to ±3
