VEMT2003X01 - Silicon NPN Phototransistor

Vishay

📥 Download Datasheet

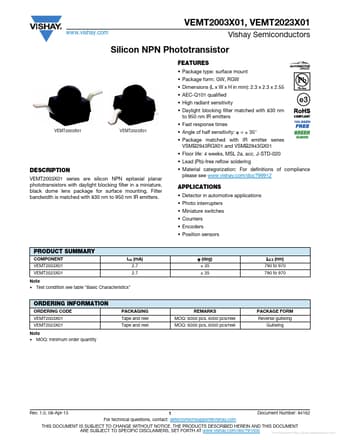

VEMT2003X01 Datasheet Preview — Preview of VEMT2003X01 PDF

Datasheet Details

Part number	VEMT2003X01
Manufacturer	Vishay
File Size	223.55 KB
Description	Silicon NPN Phototransistor
Datasheet	VEMT2003X01_Vishay.pdf

VEMT2003X01 Product details

Description

VEMT2003X01 series are silicon NPN epitaxial planar phototransistors with daylight blocking filter in a miniature, black dome lens package for surface mounting. Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS Detector in automotive applications Photo interrupters Miniature switches Counters Encoders Position

Features

Package type: surface mount.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.55.
AEC-Q101 qualified.
High radiant sensitivity.
Daylight blocking filter matched with 830 nm to 950 nm IR emitters.
Fast response times VEMT2003X01 VEMT2023X01.
Angle of half sensitivity:  = ± 35°.
Package matched with IR emitter series VSMB2943RGX01 and VSMB2943GX01.
Floor life: 4 weeks, MSL 2a, acc. J-STD-.
