VEMT2023X01 - Silicon NPN Phototransistor

Download the VEMT2023X01 datasheet PDF (VEMT2003X01 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon npn phototransistor.

Description

VEMT2003X01 series are silicon NPN epitaxial planar phototransistors with daylight blocking filter in a miniature, black dome lens package for surface mounting.

Filter bandwidth is matched with 830 nm to 950 nm IR emitters.

Material categorization: For definitions of compliance please see

Features

  • Package type: surface mount.
  • Package form: GW, RGW.
  • Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.55.
  • AEC-Q101 qualified.
  • High radiant sensitivity.
  • Daylight blocking filter matched with 830 nm to 950 nm IR emitters.
  • Fast response times VEMT2003X01 VEMT2023X01.
  • Angle of half sensitivity:  = ± 35°.
  • Package matched with IR emitter series VSMB2943RGX01 and VSMB2943GX01.
  • Floor life: 4 weeks, MSL 2a, acc. J-STD-.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VEMT2003X01_Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VEMT2023X01
Manufacturer Vishay
File Size 223.55 KB
Description Silicon NPN Phototransistor
Datasheet download datasheet VEMT2023X01 Datasheet

📁 Similar Datasheet

  • VEMD10940F - Silicon PIN Photodiode (Vishay Siliconix)
  • VEMI255A-HS3 - 2-channel EMI Filter (Vishay Siliconix)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

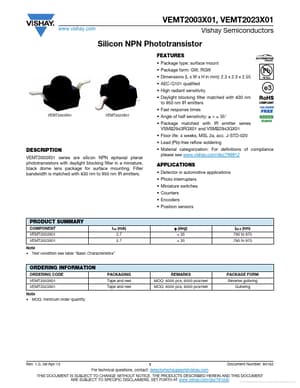

VEMT2003X01, VEMT2023X01 www.vishay.com Vishay Semiconductors Silicon NPN Phototransistor FEATURES • Package type: surface mount • Package form: GW, RGW • Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.55 • AEC-Q101 qualified • High radiant sensitivity • Daylight blocking filter matched with 830 nm to 950 nm IR emitters • Fast response times VEMT2003X01 VEMT2023X01 • Angle of half sensitivity:  = ± 35° • Package matched with IR emitter series VSMB2943RGX01 and VSMB2943GX01 • Floor life: 4 weeks, MSL 2a, acc. J-STD-020 • Lead (Pb)-free reflow soldering DESCRIPTION VEMT2003X01 series are silicon NPN epitaxial planar phototransistors with daylight blocking filter in a miniature, black dome lens package for surface mounting. Filter bandwidth is matched with 830 nm to 950 nm IR emitters.
