VEML7700 - High Accuracy Ambient Light Sensor

Product Overview

Vishay

Part number	VEML7700
Manufacturer	Vishay
File Size	291.57 KB
Description	High Accuracy Ambient Light Sensor
Datasheet	VEML7700 Datasheet

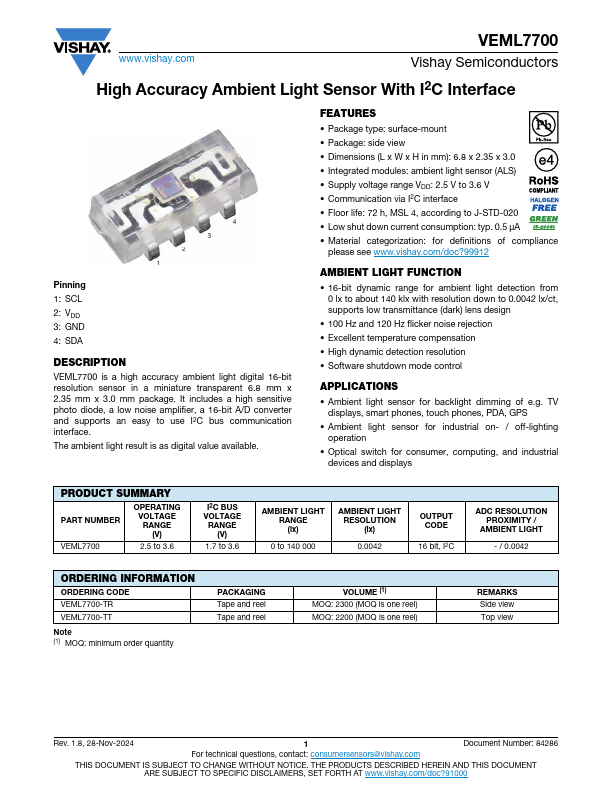

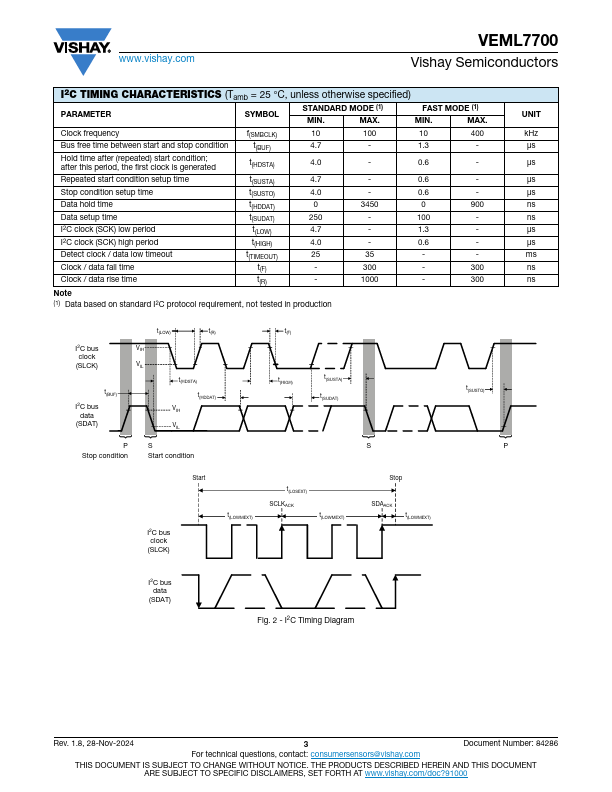

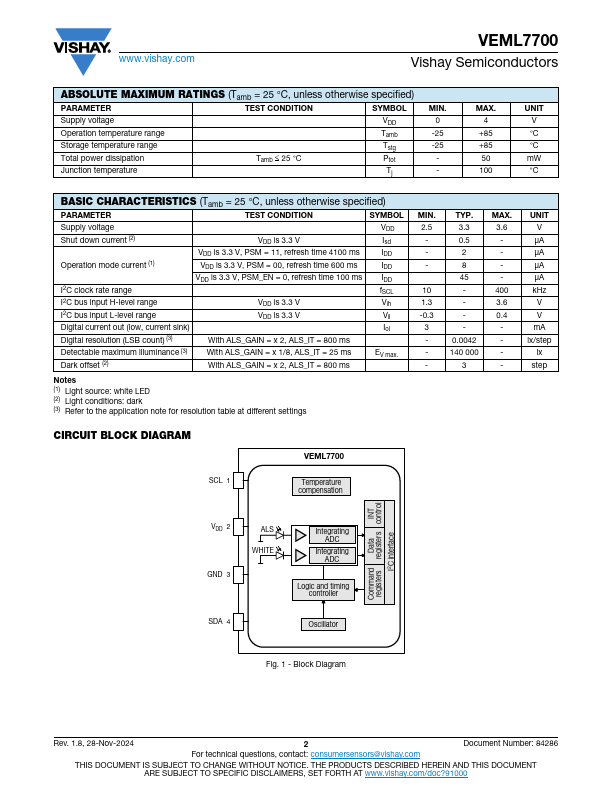

Additional preview pages of the VEML7700 datasheet.

VEML7700 is a high accuracy ambient light digital 16-bit resolution sensor in a miniature transparent 6.8 mm x 2.35 mm x 3.0 mm package.

Package type: surface-mount.
Package: side view.
Dimensions (L x W x H in mm): 6.8 x 2.35 x 3.0.
Integrated modules: ambient light sensor (ALS).
Supply voltage range VDD: 2.5 V to 3.6 V.
Communication via I2C interface.
Floor life: 72 h, MSL 4, according to J-STD-020.
Low shut down current consumption: typ. 0.5 μA.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
