VEML6046X00 - High Accuracy RGBIR Color Sensor

Product Overview

Vishay

📥 Download Datasheet

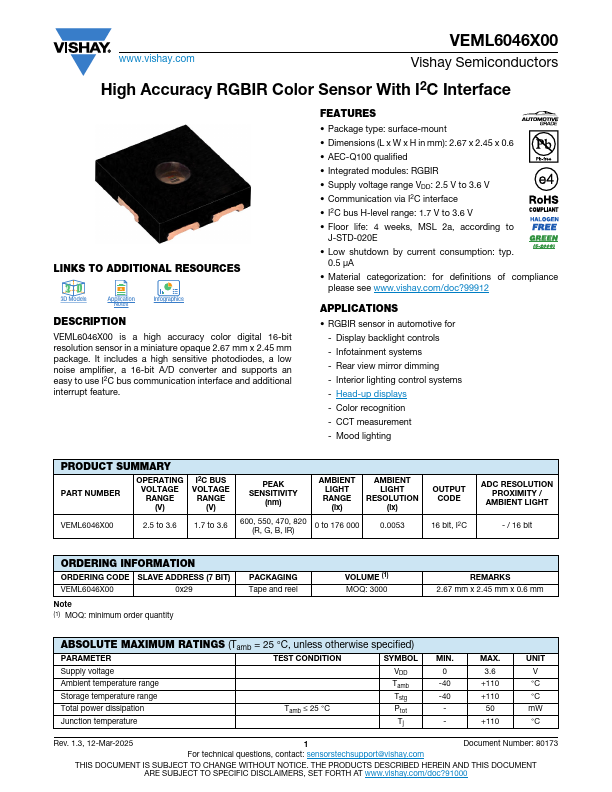

VEML6046X00 High Accuracy RGBIR Color Sensor by Vishay - Datasheet Preview — Datasheet preview – VEML6046X00

Datasheet Details

Part number	VEML6046X00
Manufacturer	Vishay
File Size	247.89 KB
Description	High Accuracy RGBIR Color Sensor
Datasheet	VEML6046X00 Datasheet

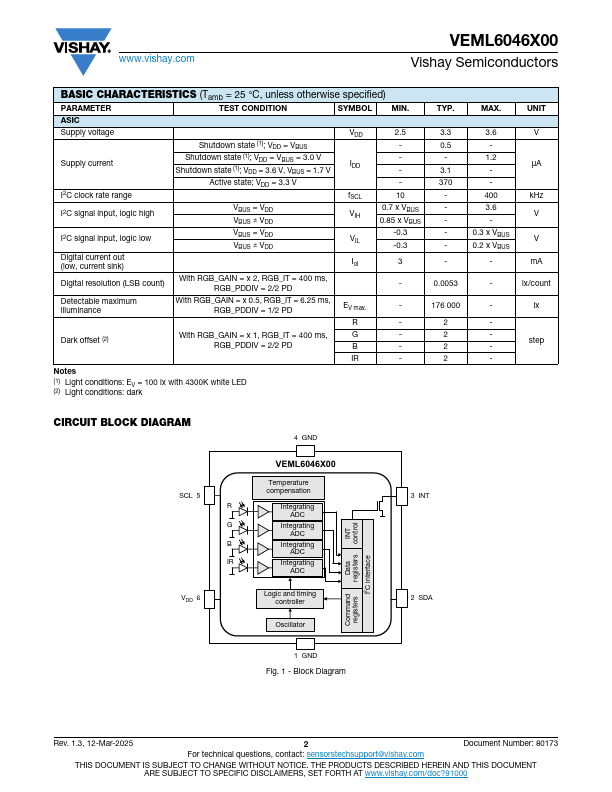

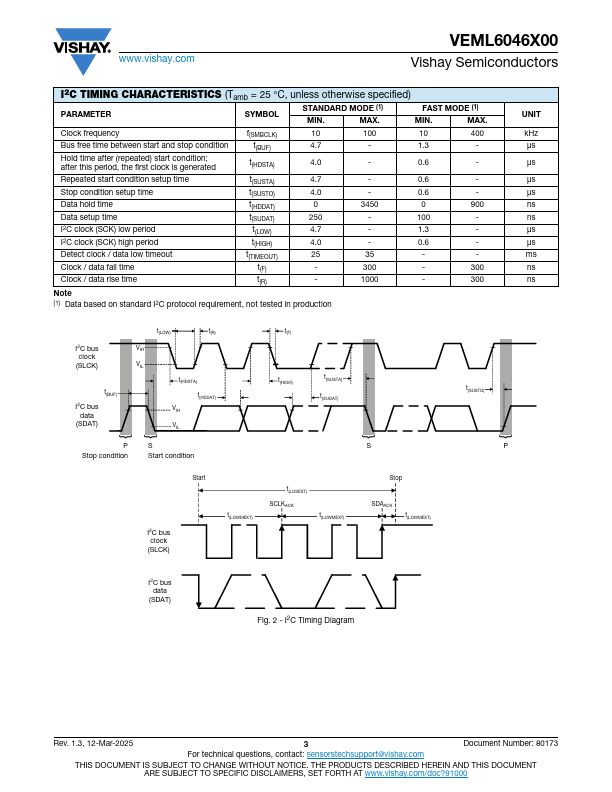

Additional preview pages of the VEML6046X00 datasheet.

Product details

Description

VEML6046X00 is a high accuracy color digital 16-bit resolution sensor in a miniature opaque 2.67 mm x 2.45 mm package.

Features

Package type: surface-mount.
Dimensions (L x W x H in mm): 2.67 x 2.45 x 0.6.
AEC-Q100 qualified.
Integrated modules: RGBIR.
Supply voltage range VDD: 2.5 V to 3.6 V.
Communication via I2C interface.
I2C bus H-level range: 1.7 V to 3.6 V.
Floor life: 4 weeks, MSL 2a, according to J-STD-020E.
Low shutdown by current consumption: typ. 0.5 μA.
Material categorization: for definitions of compliance please see.
