VEMD4160X02 - Silicon PIN Photodiode

Product Overview

Vishay

Part number	VEMD4160X02
Manufacturer	Vishay
File Size	155.19 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD4160X02 Datasheet

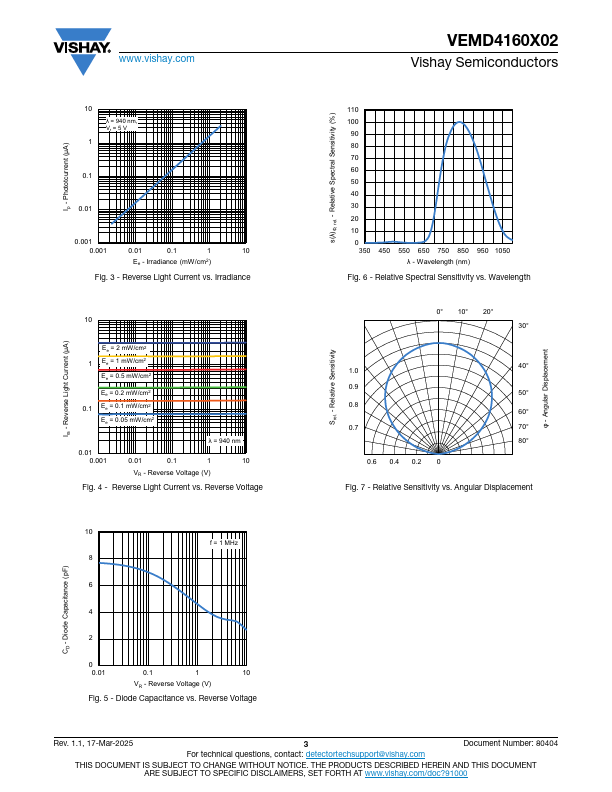

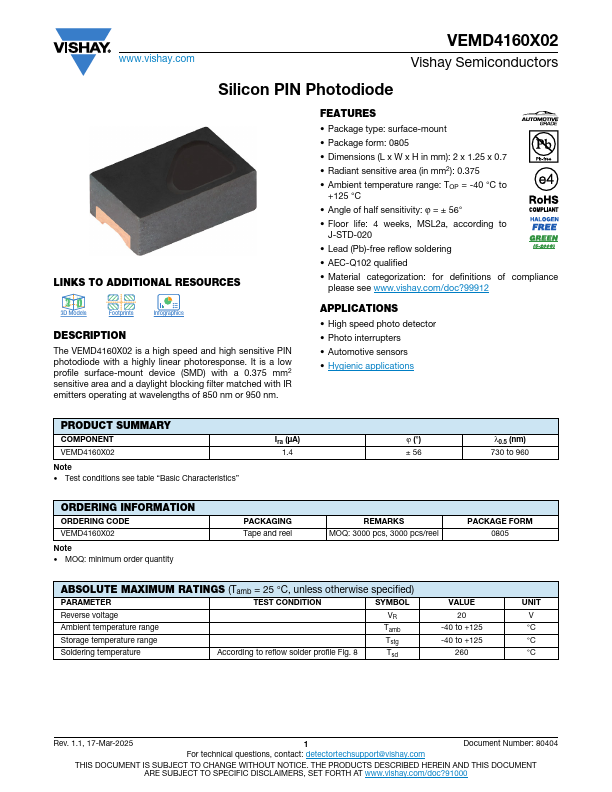

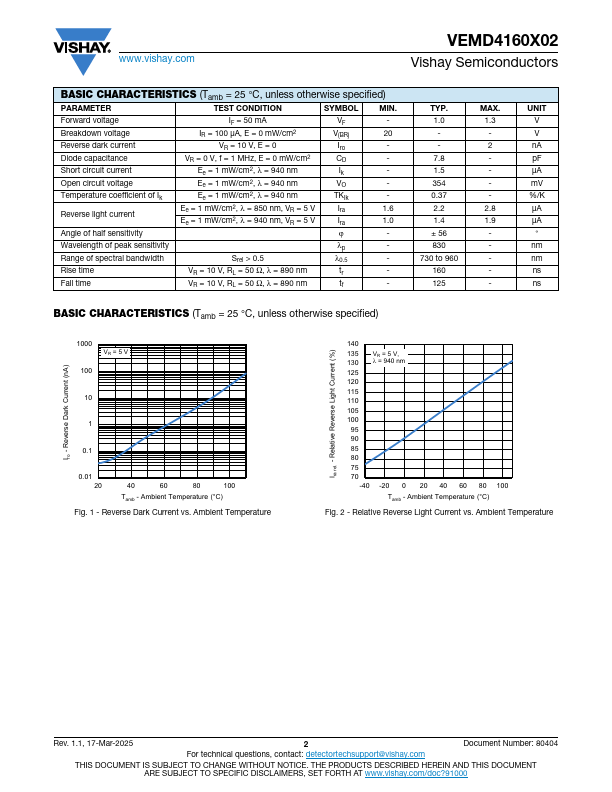

Additional preview pages of the VEMD4160X02 datasheet.

The VEMD4160X02 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse.

Package type: surface-mount.
Package form: 0805.
Dimensions (L x W x H in mm): 2 x 1.25 x 0.7.
Radiant sensitive area (in mm2): 0.375.
Ambient temperature range: TOP = -40 °C to +125 °C.
Angle of half sensitivity: ϕ = ± 56°.
Floor life: 4 weeks, MSL2a, according to J-STD-020.
Lead (Pb)-free reflow soldering.
AEC-Q102 qualified.
Material categorization: for definitions of compliance please see www. vishay. co.
