UF4006, UF4001 - Ultrafast Plastic Rectifier

Name: UF4006
SKU: UF4006-954930

Vishay

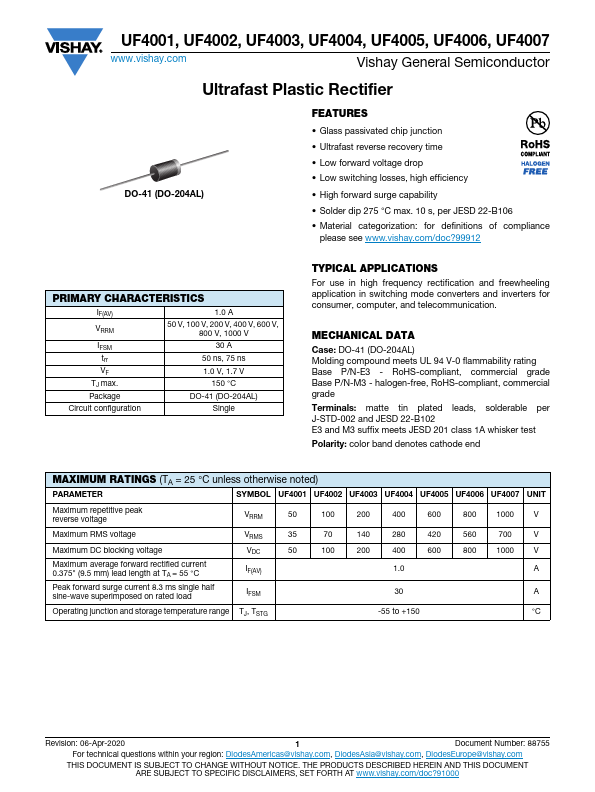

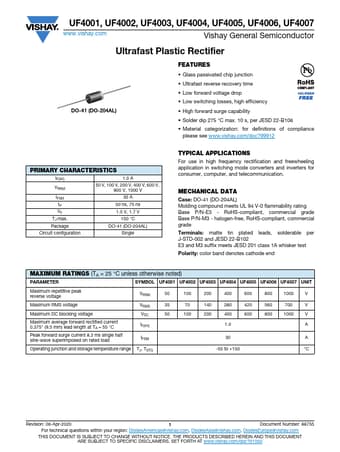

The UF4006 by Vishay is a Ultrafast Plastic Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	UF4006, UF4001
Manufacturer	Vishay
File Size	71.16 KB
Description	Ultrafast Plastic Rectifier
Datasheet	UF4001-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: UF4006, UF4001. Please refer to the document for exact specifications by model.

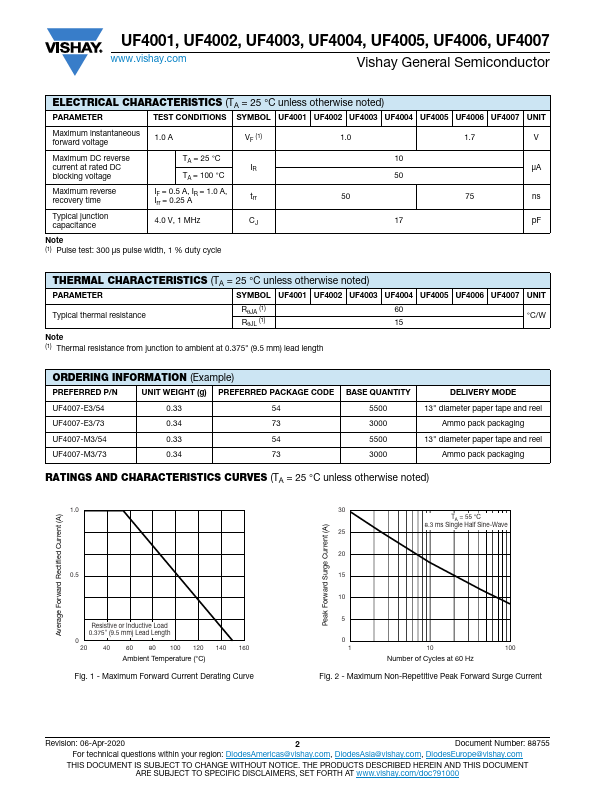

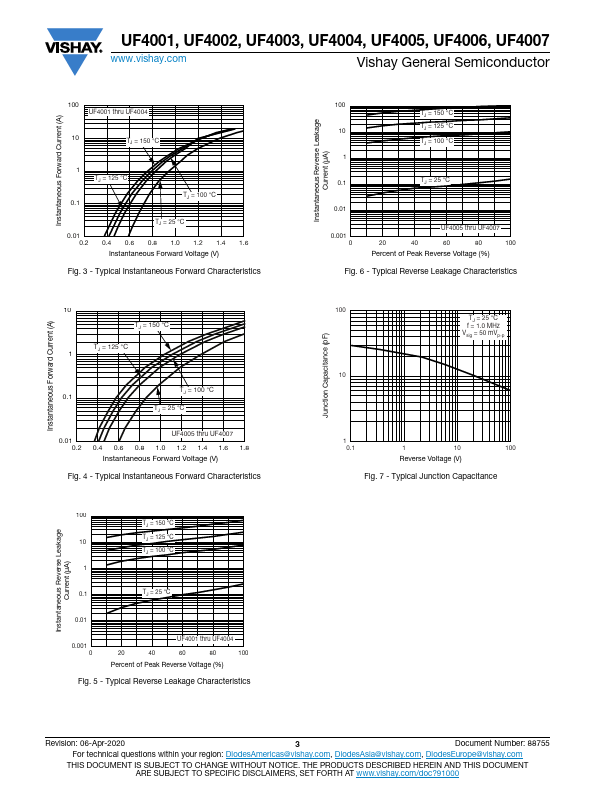

Additional preview pages of the UF4006 datasheet.

Glass passivated chip junction.
Ultrafast reverse recovery time.
Low forward voltage drop.
Low switching losses, high efficiency.
High forward surge capability.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
