UF4005 - Ultrafast Plastic Rectifier

Download the UF4005 datasheet PDF. This datasheet also covers the UF4001 variant, as both devices belong to the same ultrafast plastic rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated chip junction.
  • Ultrafast reverse recovery time.
  • Low forward voltage drop.
  • Low switching losses, high efficiency.
  • High forward surge capability.
  • Solder dip 275 °C max. 10 s, per JESD 22-B106.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF4001-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UF4005
Manufacturer Vishay
File Size 71.16 KB
Description Ultrafast Plastic Rectifier
Datasheet download datasheet UF4005 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UF4005 1.0A ULTRAFAST DIODE WON-TOP
UF4005 400V 1A silicon rectifier Invac
UF4005 ULTRA FAST RECOVERY RECTIFIERS Digitron Semiconductors
UF4005 ULTRA FAST RECTIFIER Dc Components
UF4005 (UF4001 - UF4007) Ultrafast Switching Si-Rectifiers Diotec Semiconductor

Other Datasheets by Vishay

Part Number Description
UF4001 Ultrafast Plastic Rectifier
UF4002 Ultrafast Plastic Rectifier
UF4003 Ultrafast Plastic Rectifier
UF4004 Ultrafast Plastic Rectifier
UF4006 Ultrafast Plastic Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

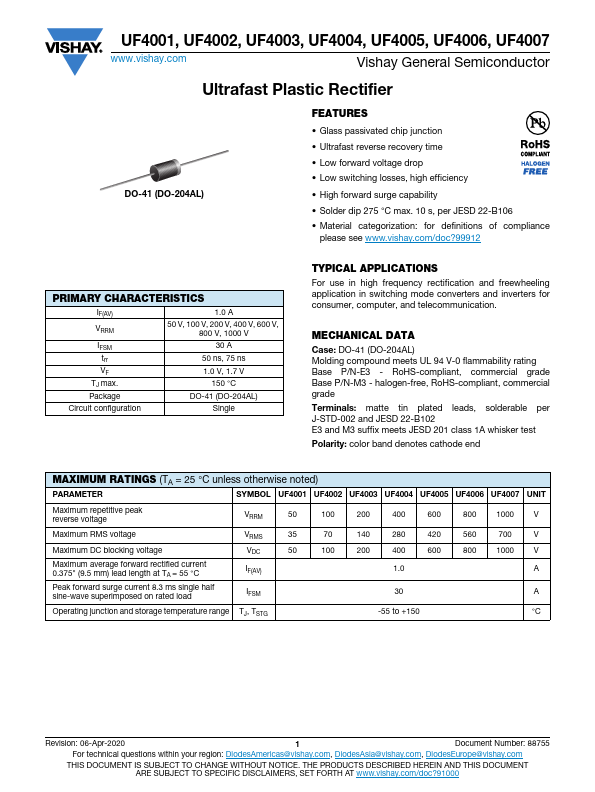

UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007 www.vishay.com Vishay General Semiconductor Ultrafast Plastic Rectifier DO-41 (DO-204AL) FEATURES • Glass passivated chip junction • Ultrafast reverse recovery time • Low forward voltage drop • Low switching losses, high efficiency • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 PRIMARY CHARACTERISTICS IF(AV) VRRM 1.0 A 50 V, 100 V, 200 V, 400 V, 600 V, 800 V, 1000 V IFSM trr VF TJ max. Package 30 A 50 ns, 75 ns 1.0 V, 1.
