TCST1103 - Transmissive Optical

Name: TCST1103
SKU: TCST1103-1259994

Vishay

📥 Download Datasheet

TCST1103 Datasheet Preview — Preview of TCST1103 PDF

Datasheet Details

Part number	TCST1103
Manufacturer	Vishay
File Size	244.79 KB
Description	Transmissive Optical
Datasheet	TCST1103-Vishay.pdf

TCST1103 Product details

Description

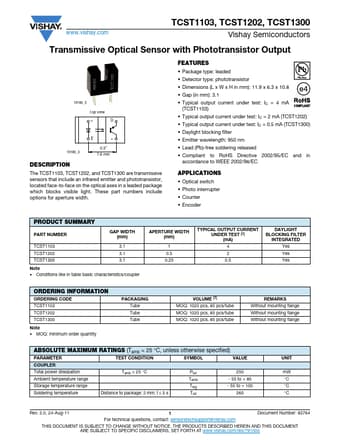

The TCST1103, TCST1202, and TCST1300 are transmissive sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light.

Features

Package type: leaded.
Detector type: phototransistor.
Dimensions (L x W x H in mm): 11.9 x 6.3 x 10.8.
Gap (in mm): 3.1.
Typical output current under test: IC = 4 mA (TCST1103).
Typical output current under test: IC = 2 mA (TCST1202).
Typical output current under test: IC = 0.5 mA (TCST1300).
Daylight blocking filter.
Emitter wavelength: 950 nm.
Lead (Pb)-free soldering released.
Compliant to RoHS.
