TCST2202 - Transmissive Optical Sensor

Vishay Telefunken

The TCST2202 by Vishay Telefunken is a Transmissive Optical Sensor. Below is the official datasheet preview.

📥 Download Datasheet

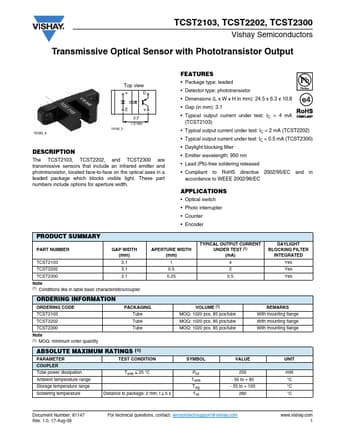

TCST2202 Transmissive Optical Sensor by Vishay Telefunken - Datasheet Preview — Official preview page of the **TCST2202** Transmissive Optical Sensor datasheet (Vishay Telefunken).

Datasheet Details

Part number	TCST2202
Manufacturer	Vishay Telefunken
File Size	269.00 KB
Description	Transmissive Optical Sensor
Datasheet	TCST2202_VishayTelefunken.pdf
Additional preview pages of the TCST2202 datasheet.

TCST2202 Product details

Description

The TCST2103, TCST2202, and TCST2300 are transmissive sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light.

Features

Package type: leaded.
Detector type: phototransistor.
Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8.
Gap (in mm): 3.1.
Typical output current under test: IC = 4 mA (TCST2103).
Typical output current under test: IC = 2 mA (TCST2202).
Typical output current under test: IC = 0.5 mA (TCST2300).
Daylight blocking filter.
Emitter wavelength: 950 nm.
Lead (Pb)-free soldering released.
Compliant to RoHS.
