SiHLZ14S - Power MOSFET

Description

Third generation power MOSFETs from Vishay utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

Features

  • Advanced process technology.
  • Surface-mount.
  • 175 °C operating temperature Available.
  • Fast switching Available.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Note.
  • This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant.  Please see the information / tables in this.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIHLZ14 Power MOSFET Vishay Siliconix
SIHLZ44S Power MOSFET Vishay Siliconix
SiHL510 Power MOSFET Vishay Siliconix
SiHL540 Power MOSFET Vishay Siliconix
SiHLIZ14G Power MOSFET Vishay Siliconix

Other Datasheets by Vishay

Part Number Description
SIHLZ14L Power MOSFET
SIHLZ24 Power MOSFET
SiHLZ24L Power MOSFET
SiHLZ24S Power MOSFET
SIHLZ34 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

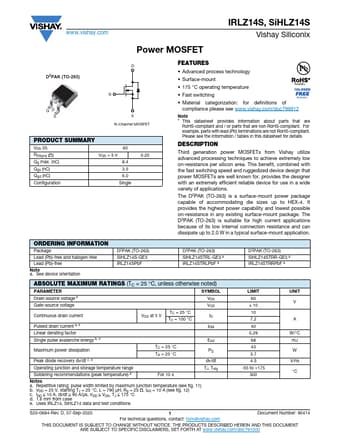

View original datasheet text
www.vishay.com IRLZ14S, SiHLZ14S Vishay Siliconix Power MOSFET D D2PAK (TO-263) G GD S S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg max. (nC) Qgs (nC) Qgd (nC) Configuration 60 VGS = 5 V 8.4 3.5 6.0 Single 0.20 FEATURES • Advanced process technology • Surface-mount • 175 °C operating temperature Available • Fast switching Available • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant.
