SiC660A, SiC660 - 60A Integrated Power Stage

Vishay

The SiC660A by Vishay is a 60A Integrated Power Stage. Below is the official datasheet preview.

📥 Download Datasheet

SiC660A 60A Integrated Power Stage by Vishay - Datasheet Preview — Official preview page of the **SiC660A** 60A Integrated Power Stage datasheet (Vishay).

Datasheet Details

Part number	SiC660A, SiC660
Manufacturer	Vishay
File Size	271.76 KB
Description	60A Integrated Power Stage
Datasheet	SiC660-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SiC660A, SiC660. Please refer to the document for exact specifications by model.

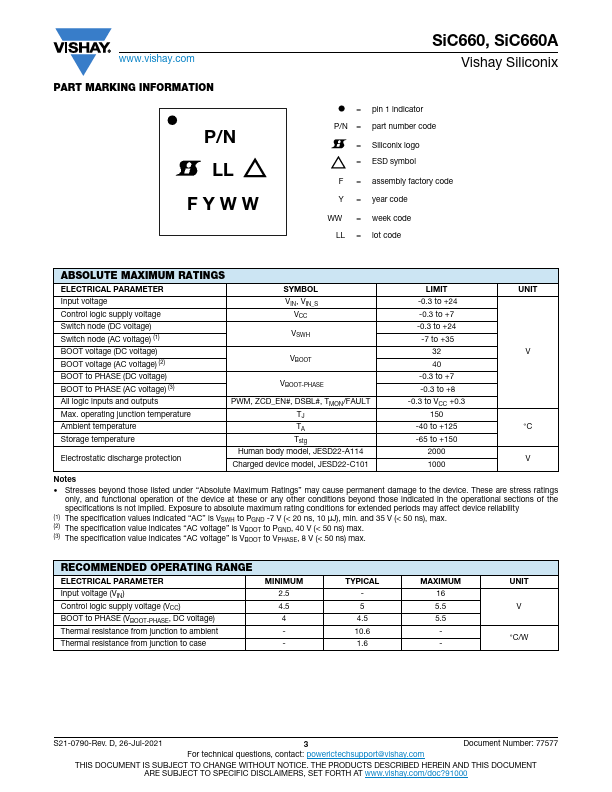

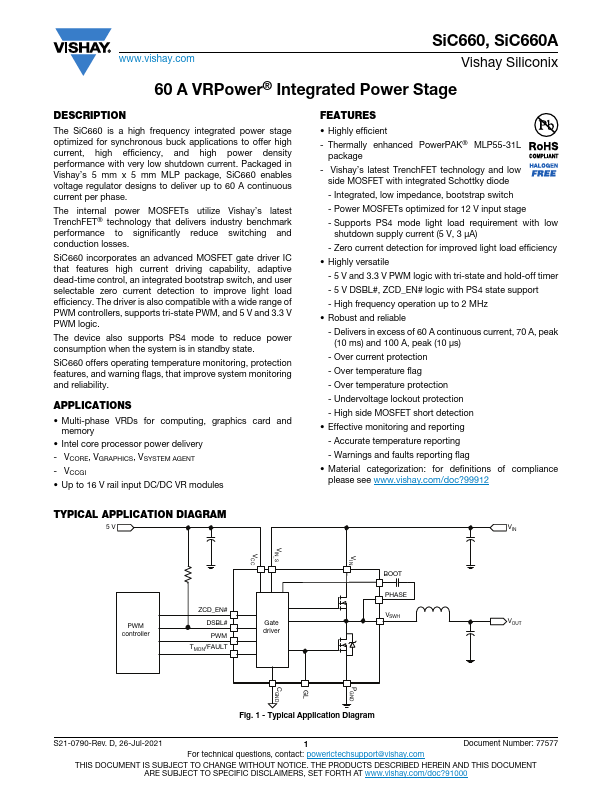

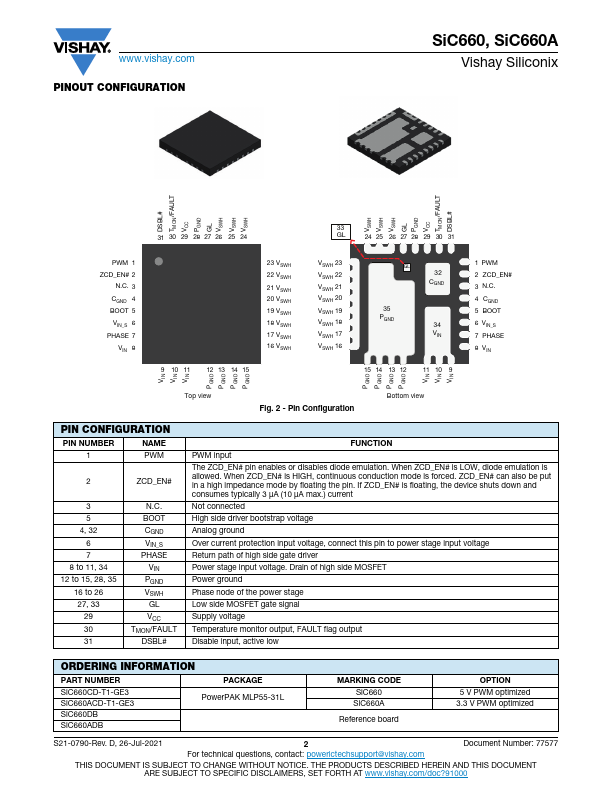

Additional preview pages of the SiC660A datasheet.

SiC660A Product details

Description

The SiC660 is a high frequency integrated power stage optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance with very low shutdown current.

Features

high current driving capability, adaptive dead-time control, an integrated bootstrap switch, and user selectable zero current detection to improve light load efficiency. The driver is also compatible with a wide range of PWM controllers, supports tri-state PWM, and 5 V and 3.3 V PWM logic. The device also supports PS4 mode to reduce power consumption when the system is in standby state. SiC660 offers operating temperature monitoring, protection features, and warning flags, that improve system mo.
