SiC641A, SiC641 - 55A IPS

Vishay

The SiC641A by Vishay is a 55A IPS. Below is the official datasheet preview.

📥 Download Datasheet

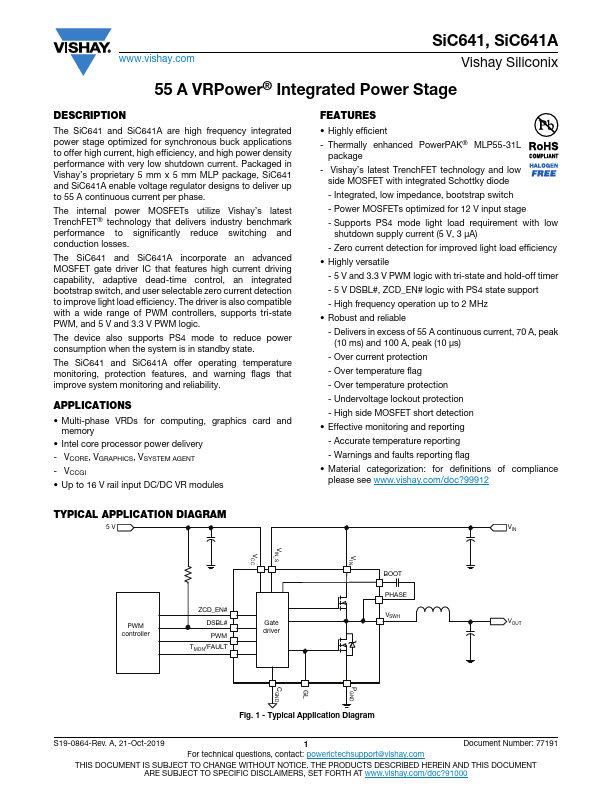

SiC641A 55A IPS by Vishay - Datasheet Preview — Official preview page of the **SiC641A** 55A IPS datasheet (Vishay).

Datasheet Details

Part number	SiC641A, SiC641
Manufacturer	Vishay
File Size	274.15 KB
Description	55A IPS
Datasheet	SiC641-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SiC641A, SiC641. Please refer to the document for exact specifications by model.

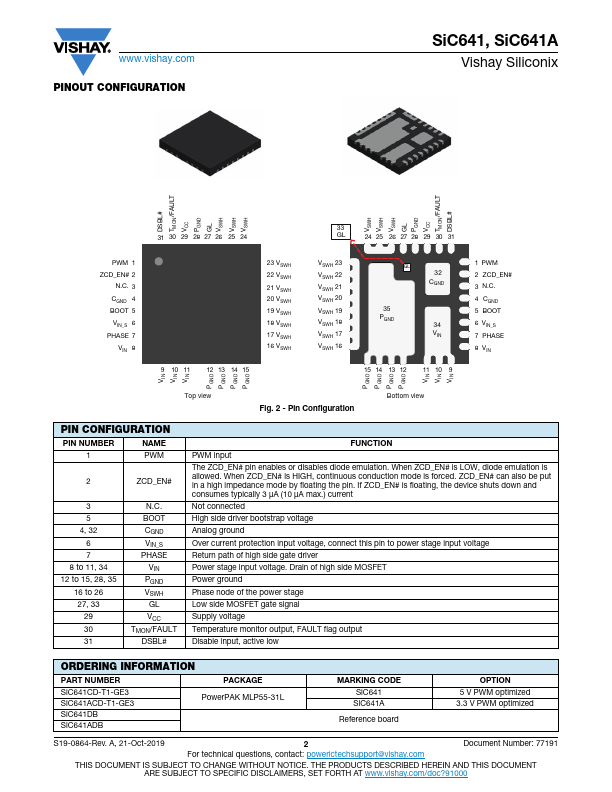

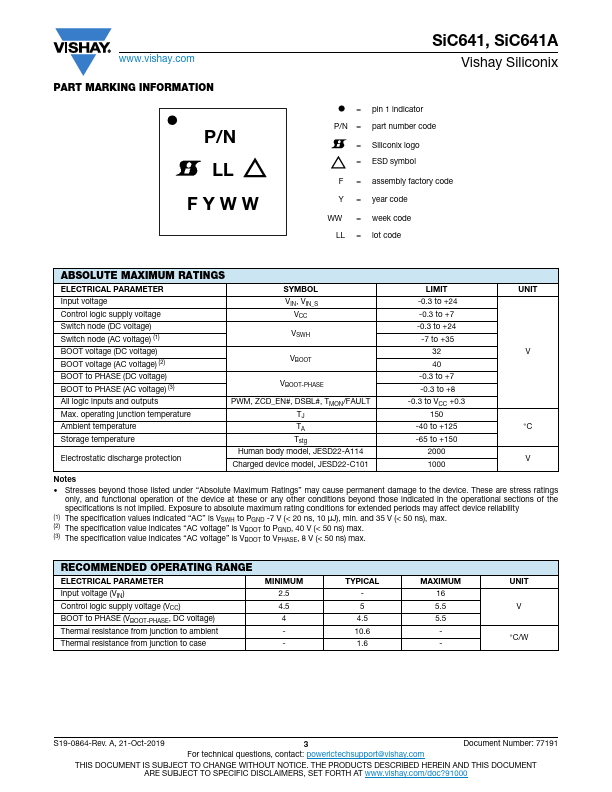

Additional preview pages of the SiC641A datasheet.

SiC641A Product details

Description

The SiC641 and SiC641A are high frequency integrated power stage optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance with very low shutdown current.

Features

high current driving capability, adaptive dead-time control, an integrated bootstrap switch, and user selectable zero current detection to improve light load efficiency. The driver is also compatible with a wide range of PWM controllers, supports tri-state PWM, and 5 V and 3.3 V PWM logic. The device also supports PS4 mode to reduce power consumption when the system is in standby state. The SiC641 and SiC641A offer operating temperature monitoring, protection features, and warning flags that imp.
