Si8410DB - N-Channel MOSFET

Features

  • TrenchFET® power MOSFET.
  • Ultra small 1 mm x 1 mm maximum outline.
  • Ultra-thin 0.548 mm maximum height.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Datasheet Details

Part number Si8410DB
Manufacturer Vishay
File Size 153.91 KB
Description N-Channel MOSFET
Datasheet download datasheet Si8410DB Datasheet

📁 Similar Datasheet

  • Si8410 - Single and Dual-Channel Digital Isolator (Skyworks Solutions)
  • SI8410 - Single and Dual-Channel Digital Isolators (Silicon Laboratories)
  • SI8411DB - P-Channel MOSFET (Vishay Siliconix)
  • SI8415DB - P-Channel MOSFET (Vishay Siliconix)
  • SI8417DB - P-Channel MOSFET (Vishay Siliconix)
  • Si8419DB - P-Channel MOSFET (Vishay Siliconix)
  • SI84 - SMT Power Inductor (Delta Electronics)
  • SI8401DB - P-Channel MOSFET (Vishay Siliconix)
  • SI8402DB - N-Channel MOSFET (Vishay Siliconix)
  • SI8405DB - P-Channel MOSFET (Vishay Siliconix)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

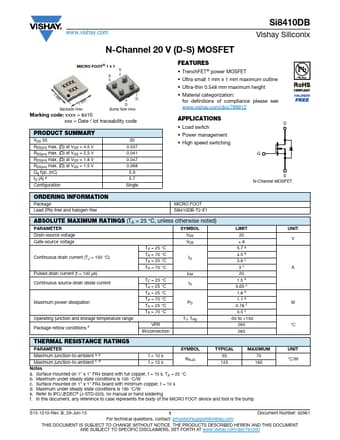

www.vishay.com Si8410DB Vishay Siliconix N-Channel 20 V (D-S) MOSFET MICRO FOOT® 1 x 1 S S2 xxxxxxx 3 1 1 1 mm 4G D Backside View Bump Side View 1 mm Marking code: xxxx = 8410 xxx = Date / lot traceability code PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = 4.5 V RDS(on) max. () at VGS = 2.5 V RDS(on) max. () at VGS = 1.8 V RDS(on) max. () at VGS = 1.5 V Qg typ. (nC) ID (A) a Configuration 20 0.037 0.041 0.047 0.068 5.9 5.7 Single FEATURES • TrenchFET® power MOSFET • Ultra small 1 mm x 1 mm maximum outline • Ultra-thin 0.548 mm maximum height • Material categorization: for definitions of compliance please see www.vishay.
