SUM90N06-5m5P, N-Channel MOSFET

SUM90N06-5m5P Vishay Siliconix N-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 60 0.0055 at VGS = 10 V ID (A) 90d Qg (Typ) .

SUM90N06-5m5P-Vishay.pdf

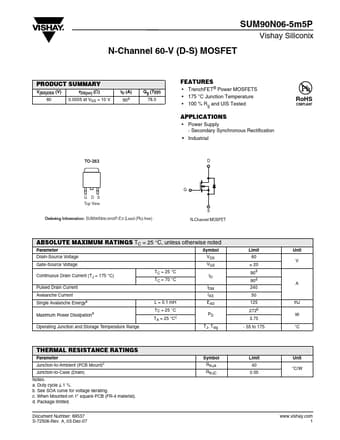

SUM90N06-5m5P Datasheet Preview — Preview of SUM90N06-5m5P PDF

Datasheet Details

Part number:

SUM90N06-5m5P

Manufacturer:

Vishay ↗

File Size:

101.93 KB

Description:

N-Channel MOSFET

Features

* TrenchFET® Power MOSFETS
* 175 °C Junction Temperature

Applications

* Power Supply - Secondary Synchronous Rectification
* Industrial TO-263 D RoHS COMPLIANT G DS Top View Ordering Information: SUM90N06-5m5P-E3 (Lead (Pb)-free) G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Volt
