SUM90UF, SUM60UF - (SUM60UF - SUM90UF) ULTRA FAST RECOVERY RECTIFIER

SSDI

📥 Download Datasheet

SUM90UF Datasheet Preview — This datasheet PDF includes multiple part numbers: SUM90UF, SUM60UF. Please refer to the document for exact specifications by model.

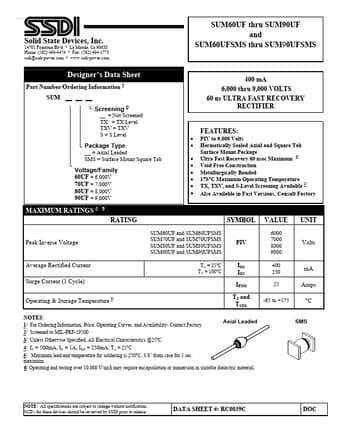

datasheet Preview Page 2

Datasheet Details

Part number	SUM90UF, SUM60UF
Manufacturer	SSDI
File Size	173.19 KB
Description	(SUM60UF - SUM90UF) ULTRA FAST RECOVERY RECTIFIER
Datasheet	SUM60UF_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SUM90UF, SUM60UF. Please refer to the document for exact specifications by model.

SUM90UF Product details

Features

aled Axial and Square Tab Surface Mount Package Ultra Fast Recovery 60 nsec Maximum 4/ Void Free Construction Metallurgically Bonded 175°C Maximum Operating Temperature TX, TXV, and S-Level Screening Available 2/ Also Available in Fast Versions, Consult Factory Voltage/Family 60UF = 6,000V 70UF = 7,000V 80UF = 8,000V 90UF = 9,000V 6/.
