SISS98DN - N-Channel 200V MOSFET

Features

  • ThunderFET® power MOSFET.
  • Optimized Qg and Qoss improve efficiency.
  • 100 % Rg and UIS tested.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Datasheet Details

Part number SISS98DN
Manufacturer Vishay
File Size 233.85 KB
Description N-Channel 200V MOSFET
Datasheet download datasheet SISS98DN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SISS27DN-T1-GE3 30V P-Channel MOSFET Kexin
SIS0100 Black and White Image Sensor Camera Module Sanyo Semicon Device
SiS1057 JFET Operational Amplifier Silicon Supplies
SIS23C128 16K x 8 CMOS Mask ROM Silicon Integrated Systems
SIS23C128A 16K x 8 CMOS Mask ROM Silicon Integrated Systems

Other Datasheets by Vishay

Part Number Description
SiSS92DN N-Channel 250V MOSFET
SiSS94DN N-Channel 200V MOSFET
SiSS05DN P-Channel MOSFET
SiSS06DN N-Channel 30V MOSFET
SiSS10ADN N-Channel 40V MOSFET

Full PDF Text Transcription

Click to expand full text

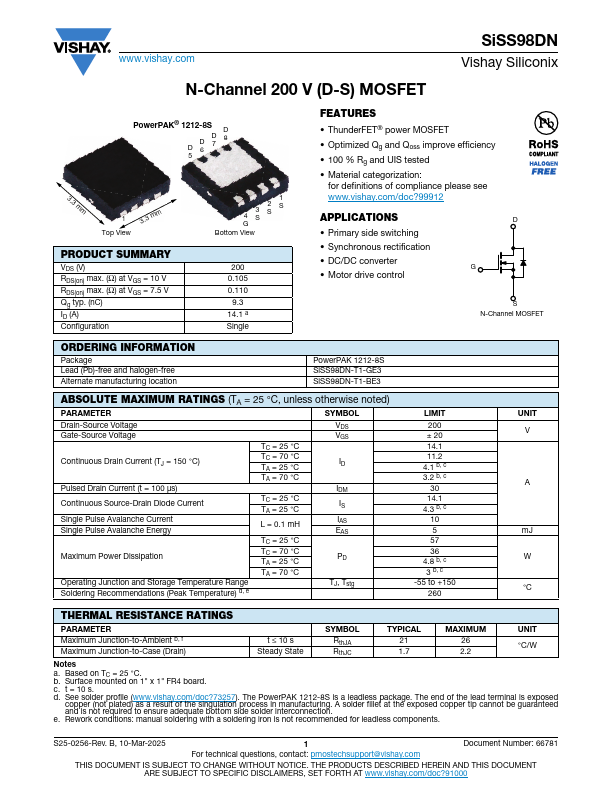

www.vishay.com SiSS98DN Vishay Siliconix N-Channel 200 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUMMARY VDS (V) RDS(on) max. (Ω) at VGS = 10 V RDS(on) max. (Ω) at VGS = 7.5 V Qg typ. (nC) ID (A) Configuration 1 4 3 S 2 S S G Bottom View 200 0.105 0.110 9.3 14.1 a Single FEATURES • ThunderFET® power MOSFET • Optimized Qg and Qoss improve efficiency • 100 % Rg and UIS tested • Material categorization: for definitions of compliance please see www.vishay.
