SE10FG, SE10FD Surface-Mount Standard Rectifiers

SE10FG Description

www.vishay.com SE10FD, SE10FG, SE10FJ Vishay General Semiconductor Surface-Mount Standard Rectifiers eSMP® Series Top view Bottom view SMF (DO-2.

SE10FG Features

* Low profile package Available
* Ideal for automated placement
* Oxide planar chip junction
* Low forward voltage drop, low leakage current
* ESD capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Wave and reflo

SE10FG Applications

* General purpose, power line polarity protection, in commercial, industrial, and automotive applications. MECHANICAL DATA Case: SMF (DO-219AB) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - for halogen-free, RoHS-compliant Base P/NHM3 - for halogen-free, RoHS-compliant, and AEC-Q

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SE10FG, SE10FD. Please refer to the document for exact specifications by model.

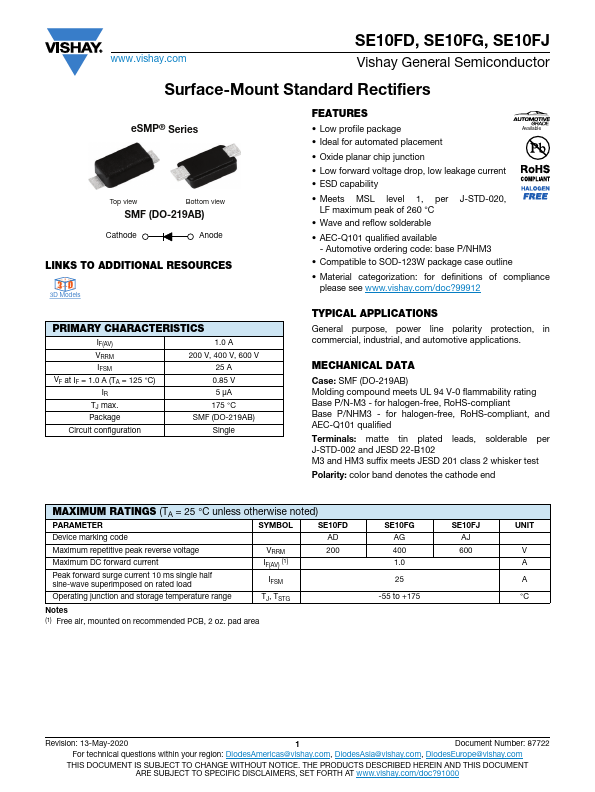

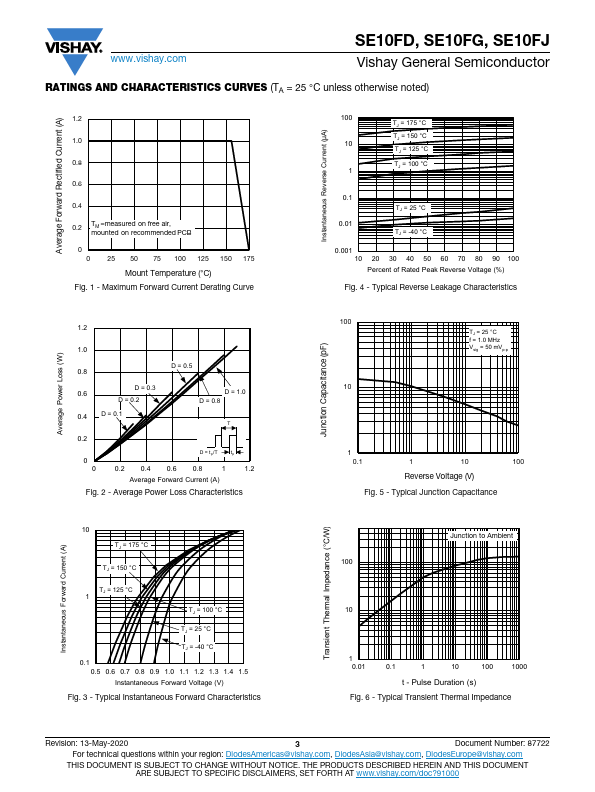

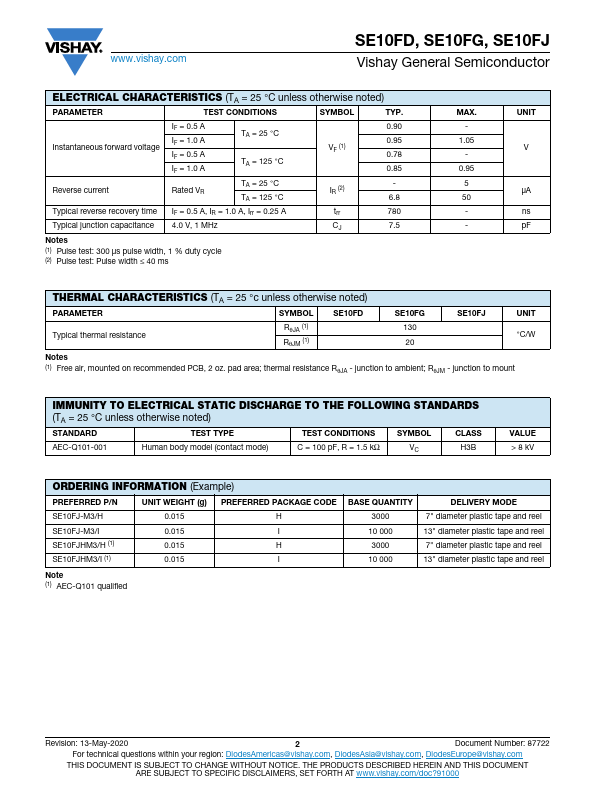

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SE10FG, SE10FD
Manufacturer
Vishay ↗
File Size
107.22 KB
Datasheet
SE10FD-Vishay.pdf
Description
Surface-Mount Standard Rectifiers
Note
This datasheet PDF includes multiple part numbers: SE10FG, SE10FD.
Please refer to the document for exact specifications by model.
