SE10DD, SE10DB Surface Mount ESD Capability Rectifiers

SE10DD Description

www.vishay.com SE10DB, SE10DD, SE10DG, SE10DJ Vishay General Semiconductor Surface Mount ESD Capability Rectifiers eSMP® Series TO-263AC (SMPD) K .

SE10DD Features

* Very low profile - typical height of 1.7 mm
* Ideal for automated placement
* Oxide planar chip junction
* Low forward voltage drop
* ESD capability
* AEC-Q101 qualified
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

SE10DD Applications

* General purpose, power line polarity protection, in both consumer and automotive applications. PRIMARY CHARACTERISTICS IF(AV) 10 A VRRM 100 V, 200 V, 400 V, 600 V IFSM VF at IF = 10 A (TA = 125 °C) IR 110 A 0.96 V 15 μA TJ max. 175 °C Package TO-263AC (SMPD) Diode variations Single MEC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SE10DD, SE10DB. Please refer to the document for exact specifications by model.

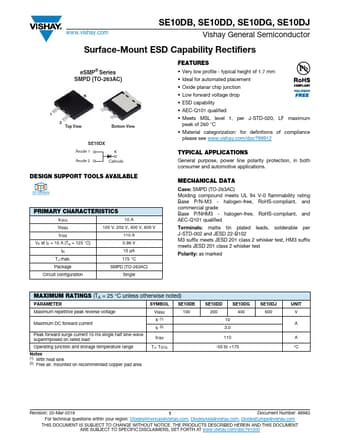

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SE10DD, SE10DB
Manufacturer
Vishay ↗
File Size
107.08 KB
Datasheet
SE10DB-Vishay.pdf
Description
Surface Mount ESD Capability Rectifiers
Note
This datasheet PDF includes multiple part numbers: SE10DD, SE10DB.
Please refer to the document for exact specifications by model.
