SBL1040CT, SBL1030CT Dual Common Cathode Schottky Rectifier

SBL1040CT Description

www.vishay.com SBL10x0CT, SBLF10x0CT, SBLB10x0CT Vishay General Semiconductor Dual Common Cathode Schottky Rectifier TO-220AB ITO-220AB SBL10x0CT.

SBL1040CT Features

* Power pack
* Guardring for overvoltage protection
* Low power loss, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-26

SBL1040CT Applications

* For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, and polarity protection application. MECHANICAL DATA Case: TO-220AB, ITO-220AB, TO-263AB Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, comme

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBL1040CT, SBL1030CT. Please refer to the document for exact specifications by model.

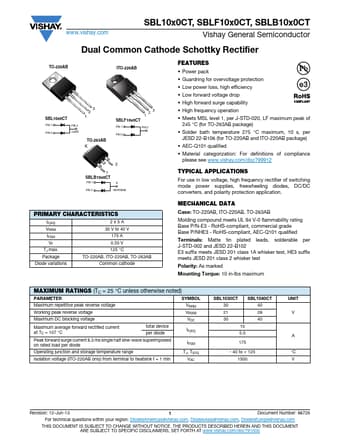

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBL1040CT, SBL1030CT
Manufacturer
Vishay ↗
File Size
133.92 KB
Datasheet
SBL1030CT-Vishay.pdf
Description
Dual Common Cathode Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SBL1040CT, SBL1030CT.
Please refer to the document for exact specifications by model.
