SBL1040, SBL1030 Schottky Barrier Rectifier

Kexin

Description

SDMIPDTTyyppee Schottky Barrier Rectifier SBL1030 - SBL1060 Diodes .

📥 Download Datasheet

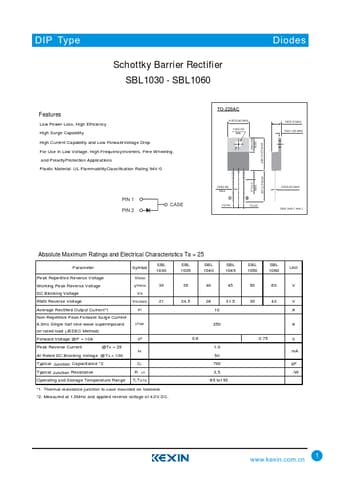

SBL1040 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBL1040, SBL1030. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SBL1040, SBL1030
Manufacturer: Kexin
File Size: 115.95 KB
Datasheet: SBL1030-Kexin.pdf
Description: Schottky Barrier Rectifier
Note: This datasheet PDF includes multiple part numbers: SBL1040, SBL1030.
Please refer to the document for exact specifications by model.

Applications

* Plastic Material: UL FlammabilityClassification Rating 94V-0 PIN 1 PIN 2 CASE TO-220AC .419(10.66) MAX .139(3.55) MIN .196(5.0) MAX .054(1.39) MAX .269(6.85) MAX .624(15.87) MAX .177(4.5) MAX .50(12.7) MAX .038(0.96) MAX. .1(2.54) .1(2.54) .025(0.65) MAX Unit: inch ( mm ) Absolute Maximum
