MCU0805AT - High Stability Thin Film Flat Chip Resistors

Product Overview

Vishay

Datasheet Details

Part number	MCU0805AT
Manufacturer	Vishay
File Size	171.53 KB
Description	High Stability Thin Film Flat Chip Resistors
Datasheet	MCU0805AT Datasheet

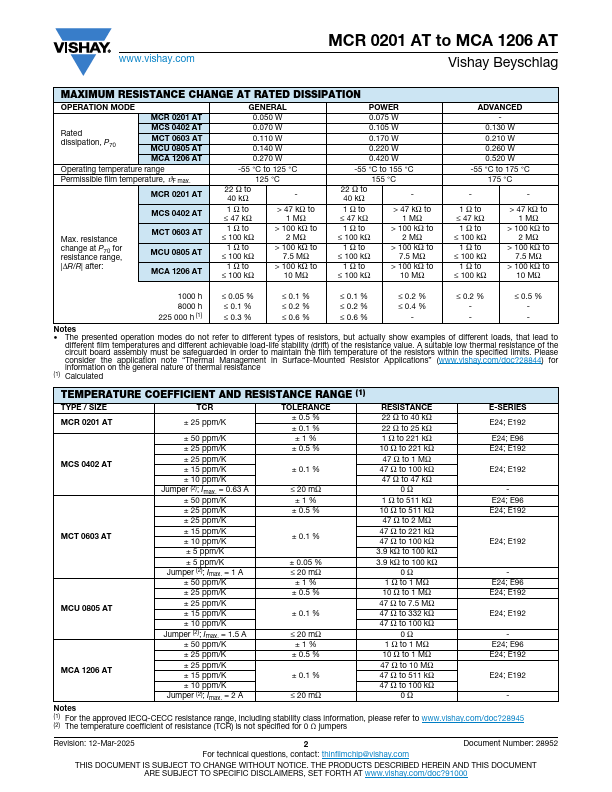

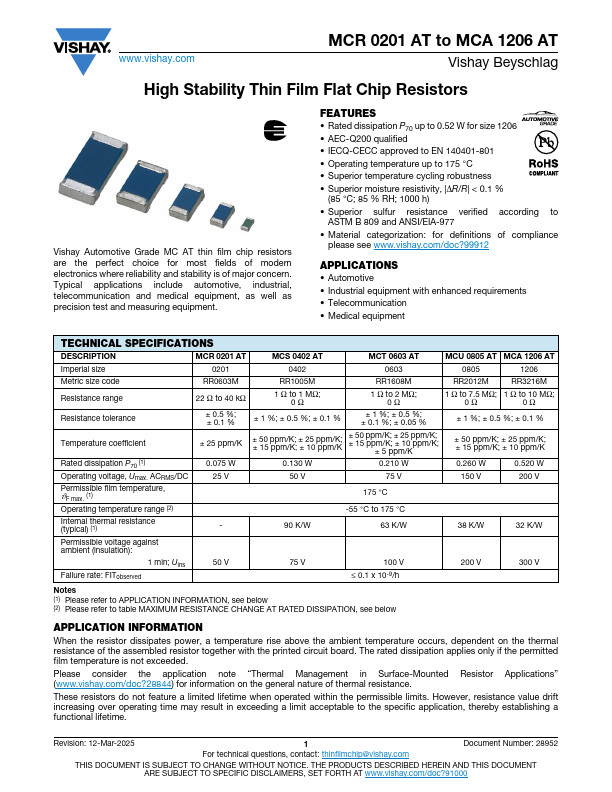

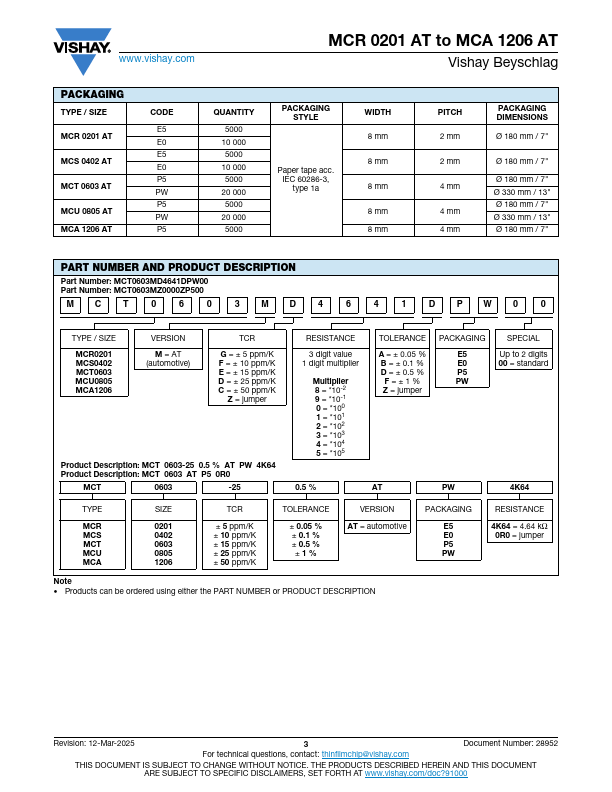

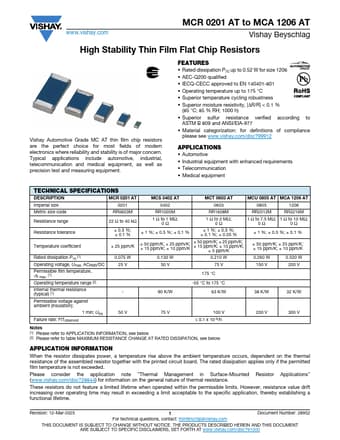

Additional preview pages of the MCU0805AT datasheet.

Product details

Description

MCR 0201 AT MCS 0402 AT MCT 0603 AT MCU 0805 AT MCA 1206 AT Imperial size 0201 0402 0603 0805 1206 Metric size code RR0603M RR1005M RR1608M RR2012M RR3216M Resistance range 22 Ω to 40 kΩ 1 Ω to 1 MΩ; 0Ω 1 Ω to 2 MΩ; 0Ω 1 Ω to 7.5 MΩ; 1 Ω to 10 MΩ; 0Ω 0Ω Resistance tolerance ± 0.5 %; ± 0.1 % ± 1 %; ± 0.5 %; ± 0.1 % ± 1 %; ± 0.5 %; ± 0.1 %; ± 0.05 % ± 1 %; ± 0.5 %; ± 0.1 % Temperature coefficient Rated dissipation P70 (1) Operating voltage, Umax.ACRMS/DC Permissible f

Features

Rated dissipation P70 up to 0.52 W for size 1206.
AEC-Q200 qualified.
IECQ-CECC approved to EN 140401-801.
Operating temperature up to 175 °C.
Superior temperature cycling robustness.
Superior moisture resistivity, |ΔR/R| < 0.1 % (85 °C; 85 % RH; 1000 h).
Superior sulfur resistance verified according to ASTM B 809 and ANSI/EIA-977.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 AP.
