MCU0805 - Professional Thin Film Chip Resistors

Product Overview

Vishay

Datasheet Details

Part number	MCU0805
Manufacturer	Vishay
File Size	160.17 KB
Description	Professional Thin Film Chip Resistors
Datasheet	MCU0805 Datasheet

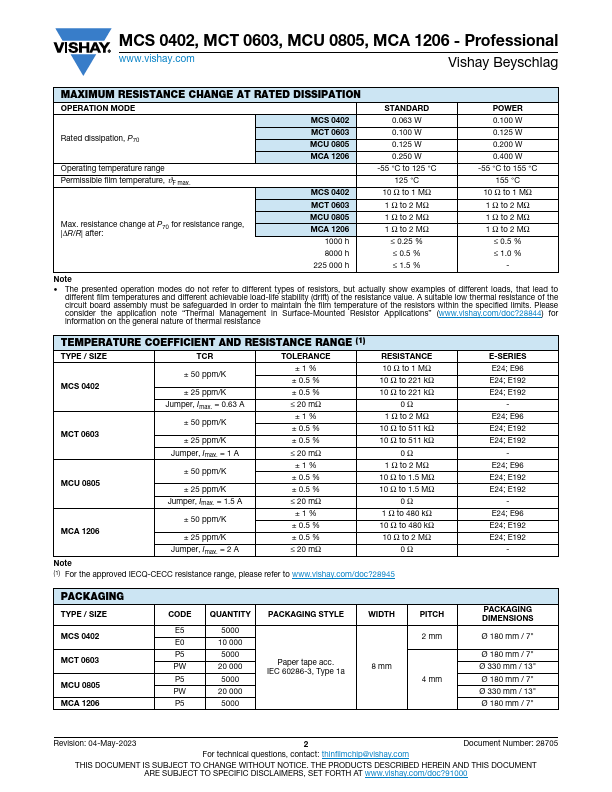

Additional preview pages of the MCU0805 datasheet.

Product details

Description

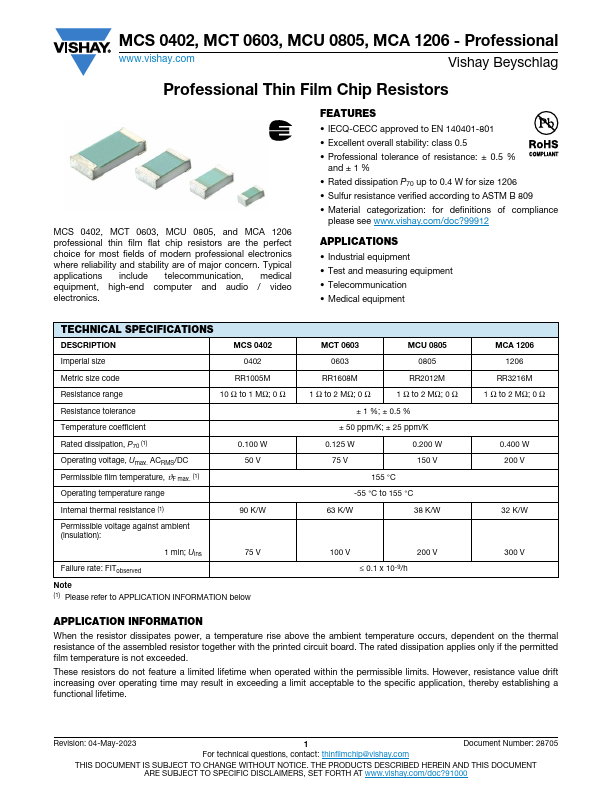

MCS 0402 Imperial size 0402 Metric size code RR1005M Resistance range 10 Ω to 1 MΩ; 0 Ω Resistance tolerance Temperature coefficient Rated dissipation, P70 (1) Operating voltage, Umax.ACRMS/DC Permissible film temperature, ϑF max.(1) Operating temperature range 0.100 W 50 V Internal thermal resistance (1) 90 K/W Permissible voltage against ambient (insulation): Failure rate: FITobserved 1 min; Uins 75 V Note (1) Please refer to APPLICATION INFORMATION below MCT 0603 MCU 080

Features

IECQ-CECC approved to EN 140401-801.
Excellent overall stability: class 0.5.
Professional tolerance of resistance: ± 0.5 % and ± 1 %.
Rated dissipation P70 up to 0.4 W for size 1206.
Sulfur resistance verified according to ASTM B 809.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
